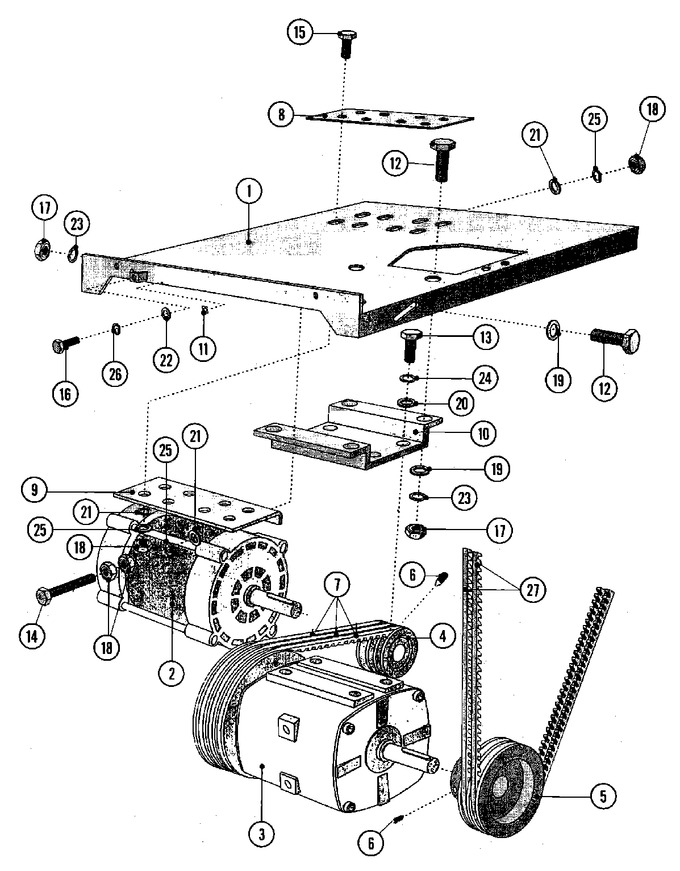

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23003083		Plate, Drive (complete)	10	Appelez-nous	-
002	23003084		Motor, Wash (208-240v, 60hz)	10	Appelez-nous	-
003	23003085		Motor, Spin (208-240v, 60hz)lu	10	Appelez-nous	-
004	23003086		V-pulley, Wash Motor	10	Appelez-nous	-
005	23003087		V-pulley, Spin Motor	10	Appelez-nous	-
006	23001658		Screw (m6x10)	10			$ 18.77
007	23003093		V-belt	10	Appelez-nous	-
008	NLA		Washer	10	Appelez-nous	-
009	NLA		Holder, Washing Motor	10	Appelez-nous	-
010	23003090		Bridge	10	Appelez-nous	-
011	NLA		Label, Earth	10	Appelez-nous	-
012	23002661		Screw (m12x35)	10	Appelez-nous	-
013	23002648		Screw (m10x20)	10	Appelez-nous	-
014	NLA		Screw (m8x80)	10	Appelez-nous	-
015	23002434		Screw (m8x30)	10	Appelez-nous	-
016	23001733		Screw (m6x10)	10	Appelez-nous	-
017	NLA		Nut (m12)	10	Appelez-nous	-
018	23002435		Nut (m8)	10	Appelez-nous	-
019	23002657		Washer (13)	10	Appelez-nous	-
020	23002655		Washer (10.5)	10	Appelez-nous	-
021	23002653		Washer (8/6)	10	Appelez-nous	-
022	23002282		Washer (6)	10	Appelez-nous	-
023	23002658		Washer (12)	10	Appelez-nous	-
024	23002654		Washer (10)	10	Appelez-nous	-
025	23002358		Washer M8	10	Appelez-nous	-
026	20007283		Washer   (Replaces: 23002357)	10			$ 504.91
027	23003092		V-belt (60hz)	10	Appelez-nous	-
028	NLA		Shield, Motor	10	Appelez-nous	-
