Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

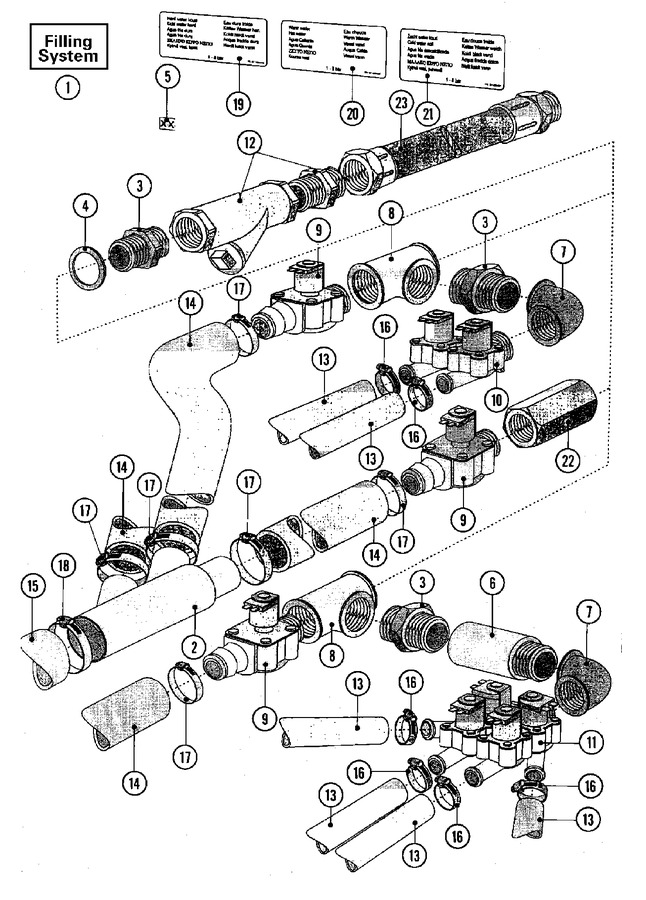

001	23003162		System, Filling	10	Appelez-nous	-
002	23003163		Tube, Connection	10	Appelez-nous	-
003	23001482		Nipple (3/4`` Pipe Thread)	10			$ 747.91
004	NLA		Washer	10	Appelez-nous	-
005	NLA		Plate, Index	10	Appelez-nous	-
006	23001484		Extension, Brass Pipe Thread	10	Appelez-nous	-
007	23001756		Elbow (3/4``)	10	Appelez-nous	-
008	23001485		Tee, 3/4`` Pipe Thread (brass)	10	Appelez-nous	-
009	23002071		Valve, Inlet (1-way 3/4``)	10	Appelez-nous	-
010	23002070		Valve, Inlet (2-way 3/4``)	10	Appelez-nous	-
011	WP23001755		Valve, Four Way (3/4``)   (Replaces: 23001755)	10			$ 272.26
011	24001121		Kit, Valve Repair (10mm)	10	Appelez-nous	-
012	23003166		Filter (complete)	10	Appelez-nous	-
013	23001507		Waterhose (green)	10	Appelez-nous	-
014	23001740		Hose (19x27)	10	Appelez-nous	-
015	23002755		Hose	10	Appelez-nous	-
016	WP596669		Clamp, Hose   (Replaces: 23001506)	10		Immediately	$ 7.56
017	WP616099		Clamp, Hose (20-32)   (Replaces: 23001262)	10		Immediately	$ 7.03
018	WP616099		Clamp, Hose (32-50)   (Replaces: 23001261)	10		Immediately	$ 7.03
019	23001471		Sticker, Cold Soft Water	10			$ 1,387.22
020	23001469		Sticker, Hot Water	10			$ 1,212.53
021	NLA		Sticker, Cold Hard Water	10	Appelez-nous	-
022	NLA		Ontube	10	Appelez-nous	-
023	23001523		Hose, Connection	10	Appelez-nous	-
