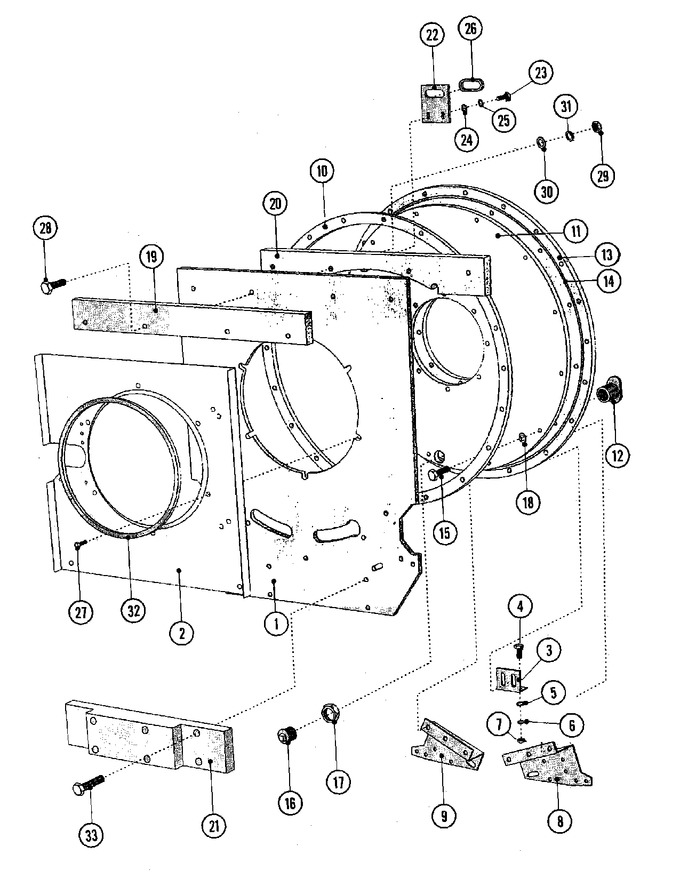

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | 23003049 | Counter Weight (front) | 10 |
|
- | ||||
| 002 | 23003050 | Cover | 10 |
|
- | ||||
| 003 | 23003051 | Support | 10 |
|
- | ||||
| 004 | 23002987 | Screw (m10x30) | 10 |
|
- | ||||
| 005 | 23002655 | Washer (10.5) | 10 |
|
- | ||||
| 006 | 23002654 | Washer (10) | 10 |
|
- | ||||
| 007 | DC60-50145A | Nut M10 (Replaces: 23001661) | 10 |
|
$ 2.39 | ||||
| 008 | 23003052 | Holder, Damper | 10 |
|
- | ||||
| 009 | 23003053 | Damper, Holder | 10 |
|
- | ||||
| 010 | 23003054 | Ring, Assembling Drum | 10 |
|
- | ||||
| 011 | 23003055 | Plate, Back | 10 |
|
- | ||||
| 012 | 23003056 | Joint, Screw | 10 |
|
- | ||||
| 013 | 23003057 | Plate, Back (cast Iron) | 10 |
|
- | ||||
| 014 | 23003058 | Sealing | 10 |
|
- | ||||
| 015 | 23002353 | Screw (m6x12) | 10 |
|
- | ||||
| 016 | 23002480 | Plug (3/4) | 10 |
|
- | ||||
| 017 | 23003059 | Nut, Binding | 10 |
|
- | ||||
| 018 | 23002281 | Washer (6-copper) | 10 |
|
- | ||||
| 019 | 23003060 | Weight (upper) | 10 |
|
- | ||||
| 020 | 23003061 | Weight (upper-2) | 10 |
|
- | ||||
| 021 | 23003062 | Weight (lower) | 10 |
|
- | ||||
| 022 | 23003063 | Plate, Out Of Balance | 10 |
|
- | ||||
| 023 | 23002462 | Screw (m6 X 20) Lu | 10 |
|
$ 5.14 | ||||
| 024 | 23002282 | Washer (6) | 10 |
|
- | ||||
| 025 | 20007283 | Washer (Replaces: 23002357) | 10 |
|
$ 504.91 | ||||
| 026 | 23001117 | Ring, Rubber (dia. 25) | 10 |
|
- | ||||
| 027 | 23002721 | Screw (m4x12) | 10 |
|
- | ||||
| 028 | NLA | Screw (m8x80) | 10 |
|
- | ||||
| 029 | 23002435 | Nut (m8) | 10 |
|
- | ||||
| 030 | 23002653 | Washer (8/6) | 10 |
|
- | ||||
| 031 | 23002358 | Washer M8 | 10 |
|
- | ||||
| 032 | 23001088 | Rubber Trim | 10 |
|
- | ||||
| 033 | NLA | Screw (m10x120) | 10 |
|
- |
