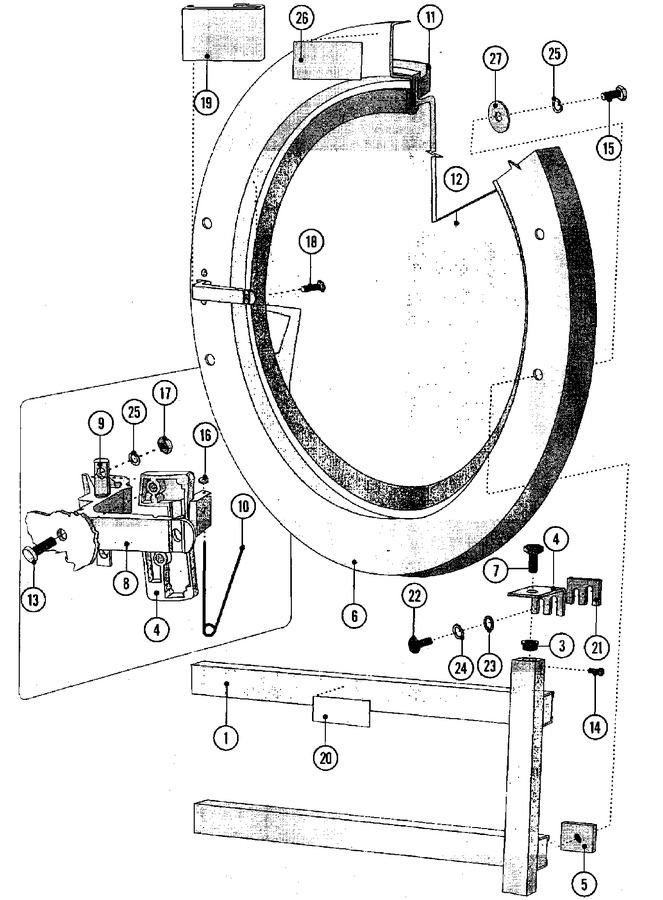

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23003094		Doorholder	10	Appelez-nous	-
002	23003095		Hinge	10	Appelez-nous	-
003	23003096		Piece, Insertion	10	Appelez-nous	-
004	23003097		Plate, Hinge	10	Appelez-nous	-
005	NLA		Nut, Doorholder	10	Appelez-nous	-
006	23002261		Ring, Door	10	Appelez-nous	-
007	23002266		Bolt (m10)	10	Appelez-nous	-
008	23001510		Handle, Door	10	Appelez-nous	-
008	23003633		Lever, Door	14	Appelez-nous	-
009	23001168		Shaft, Lever	14	Appelez-nous	-
009	23003100		Pin	10			$ 413.16
010	23003101		Spring	10	Appelez-nous	-
011	23001612		Seal, Door	10	Appelez-nous	-
012	23003103		Glass	10	Appelez-nous	-
013	23001175		Screw (m6x20 Stainless Steellu	10	Appelez-nous	-
014	23001621		Screw (m4x12) Lu	10		Immediately	$ 311.03
015	23002279		Bolt (m6x20)	10	Appelez-nous	-
016	23001057		Speednut (m3)	10	Appelez-nous	-
017	23001176		Nut (m6 Stainless Steel)	14	Appelez-nous	-
017	23002130		Washer (6)		Appelez-nous	-
017	23002280		Nut M6	10	Appelez-nous	-
018	23001621		Screw (m4x12) Lu	14		Immediately	$ 311.03
018	23002617		Screw (m4x8)	10	Appelez-nous	-
019	12001889		Kit, Door Handle Assembly	14	Appelez-nous	-
019	23001614		Doorlock, Handlegrip	10	Appelez-nous	-
020	23001468		Sticker, Spin Direction	10			$ 870.39
021	NLA		Washer, Hinge	10	Appelez-nous	-
022	23002723		Screw (m8x22)	10	Appelez-nous	-
023	23001608		Washer (m8) Lu	10	Appelez-nous	-
024	23002727		Washer (8) Lu	10	Appelez-nous	-
025	23002130		Washer (6)	10	Appelez-nous	-
026	23002297		Label, Heatwarning	10	Appelez-nous	-
027	23002265		Washer	10	Appelez-nous	-
