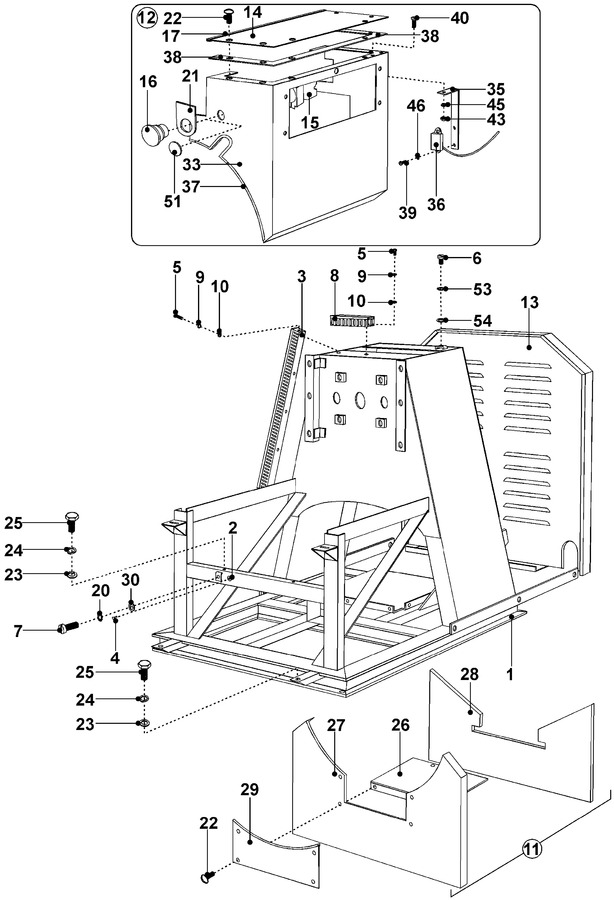

01 - Frame And Cover Assembly


02 - Side Panels


03 - Outer Shell Assembly


04 - Inner Basket


05 - Door


06 - Door Lock Assembly


07 - Bearing Assembly


08 - Motor And Pulley


09 - Soap Box Assembly


10 - Control Panel


11 - Main Control


12 - Soap Injection & Accessories


13 - Water Valve Assembly


14 - Drain Valve Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23003994		Complete Frame	10	Appelez-nous	-
002	23001550		Label, Earth	10	Appelez-nous	-
003	23001551		Gutter, Cable (plastic)	10	Appelez-nous	-
004	23001552		Rivet, Blind (2,6x6)	10	Appelez-nous	-
005	23002423		Screw (m4 X 10)	10	Appelez-nous	-
006	23002303		Bolt (m6x12)	10	Appelez-nous	-
007	23001555		Bolt (m8x14)	10	Appelez-nous	-
008	23001551		Gutter, Cable (plastic)	10	Appelez-nous	-
009	23002400		Washer	10	Appelez-nous	-
010	23001056		Washer (4.3)	10	Appelez-nous	-
011	23002223		Front Panel Assembly	10	Appelez-nous	-
012	23002225		Soap Hopper Cover Assembly	10	Appelez-nous	-
013	23002226		Cover, Rear	10	Appelez-nous	-
014	23002227		Lid, Soap Box Cover	10	Appelez-nous	-
015	23002331		Emergency Bloc (w/lamp)   (Replaces: 23001075)	10	Appelez-nous	-
016	23002331		Emergency Stop   (Replaces: 23001078)	10	Appelez-nous	-
017	23002473		Rubber, Protective	10			$ 4.52
020	23002425		Washer, Lock	10			$ 473.30
021	23003995		Label Stop	10	Appelez-nous	-
022	23003996		Bolt M6x18	10	Appelez-nous	-
023	23002653		Washer (8/6)	10	Appelez-nous	-
024	23002439		Washer, Spring Lock (8)	10	Appelez-nous	-
025	23002475		Bolt (m8x20)	10			$ 13.66
026	23002228		Support, Front Panel	10	Appelez-nous	-
027	23002229		Panel, Front	10	Appelez-nous	-
028	NLA		Sheet, Antivibration	10	Appelez-nous	-
029	23002231		Cover	10	Appelez-nous	-
030	23002424		Washer	10	Appelez-nous	-
033	NLA		Plate, Soap Box Cover	10	Appelez-nous	-
035	23002233		Holder, Rear Relay	10	Appelez-nous	-
036	23001566		Switch, Magnetic	10	Appelez-nous	-
037	23002473		Rubber, Protective	10			$ 4.52
038	23001567		Sheet, Anti-vibration	10	Appelez-nous	-
039	23001468		Sticker, Spin Direction	10			$ 870.39
040	23002769		Screw (m4 X 10)	10	Appelez-nous	-
043	23003666		Nut (m4)	10	Appelez-nous	-
045	23001573		Washer (4.3)	10	Appelez-nous	-
046	23002865		Lock Washer M3	10	Appelez-nous	-
051	23003997		Plug, Hole	10	Appelez-nous	-
