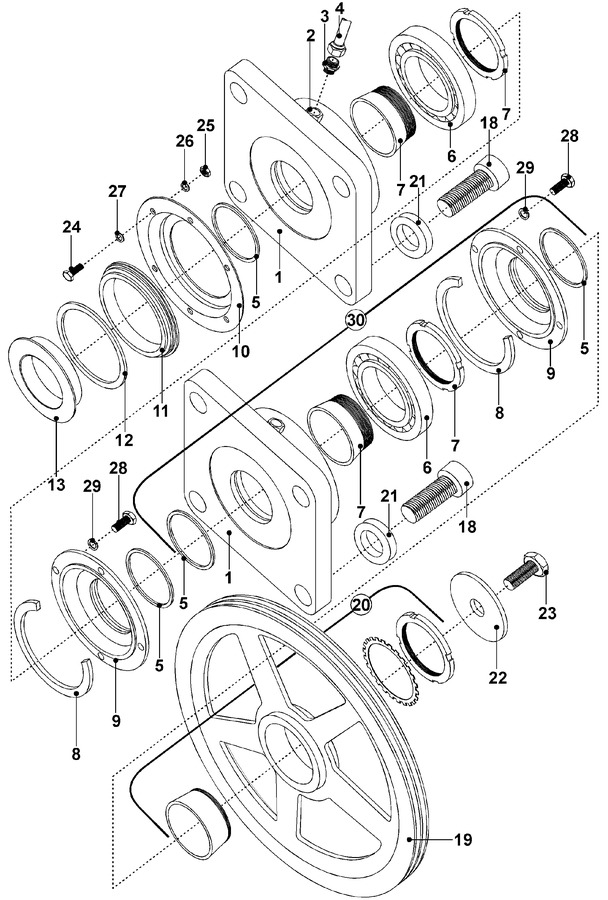

07 - Bearing Assembly


08 - Motor And Pulley


09 - Soap Box Assembly


10 - Control Panel


11 - Main Control


12 - Soap Injection & Accessories


13 - Water Valve Assembly


14 - Drain Valve Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23004013		Bearing Housing	10	Appelez-nous	-
002	23002273		Adapter	10	Appelez-nous	-
003	23001645		Adaptor, Grease Hose	10	Appelez-nous	-
004	23001646		Fixation, Grease Hose	10	Appelez-nous	-
005	23001647		Ring, Felt	10	Appelez-nous	-
006	23001648		Bearing	10	Appelez-nous	-
007	23001649		Bushing	10	Appelez-nous	-
008	23001650		Ring	10	Appelez-nous	-
009	23004014		Bearing Housing Cover	10	Appelez-nous	-
010	23002198		Case, Joint	10	Appelez-nous	-
011	23001213		Water Seal	10	Appelez-nous	-
012	23001212		Seal Ring	10	Appelez-nous	-
013	23004015		Gasket,(seal)	10	Appelez-nous	-
018	23002199		Bolt (m18x70)	10	Appelez-nous	-
019	23002275		Pulley, Belt	10	Appelez-nous	-
020	23001653		Bushing	10	Appelez-nous	-
021	23002276		Washer (18x10)	10	Appelez-nous	-
022	23002277		Washer	10	Appelez-nous	-
023	23002278		Bolt (m16x30)	10	Appelez-nous	-
024	23002279		Bolt (m6x20)	10	Appelez-nous	-
025	23002280		Nut M6	10	Appelez-nous	-
026	23002281		Washer (6-copper)	10	Appelez-nous	-
027	23003774		Washer 12	10	Appelez-nous	-
028	23002647		Screw (m8x25)	10	Appelez-nous	-
029	23002358		Washer M8	10	Appelez-nous	-
030	WP23004016		Complete Flange Bearing   (Replaces: 23004016)	10			$ 2,367.02
