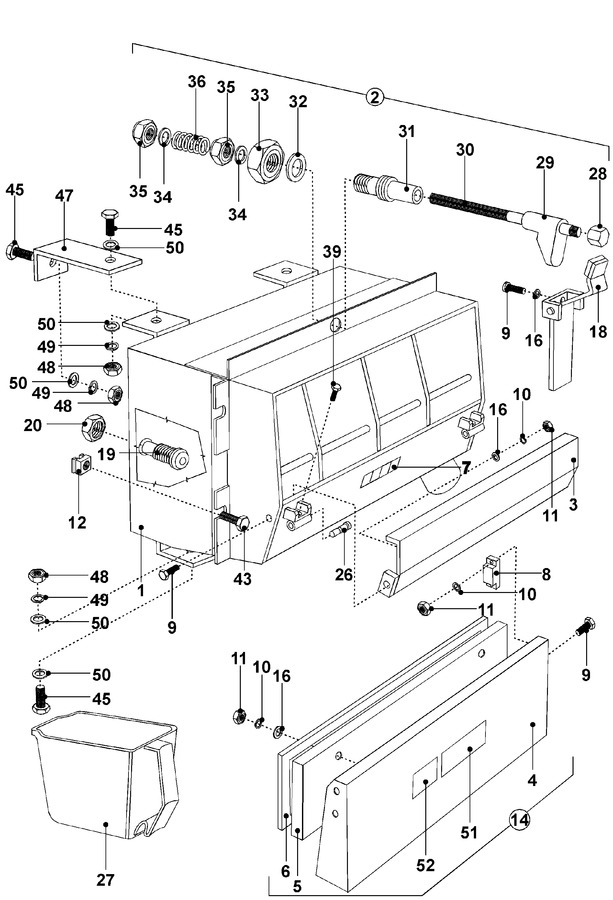

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	Y23002289		Soap Box Assembly	10	Appelez-nous	-
002	23001665		Lock, Soap Box	10	Appelez-nous	-
003	Y23002290		Cover	10	Appelez-nous	-
004	23002291		Door, Soap Box (comp.)	10			$ 356.14
005	23002292		Insert, Door	10	Appelez-nous	-
006	23001666		Seal (10x20x1130) Lu	10	Appelez-nous	-
007	23001667		Label, Soap Box	10	Appelez-nous	-
008	23001668		Contact, Magnetic	10	Appelez-nous	-
009	23001682		Screw (m4x6)	10	Appelez-nous	-
010	23002129		Washer (m4)	10	Appelez-nous	-
011	23002652		Nut (qty Of 4 = 1 Piece)	10	Appelez-nous	-
012	23002455		Nut, Rapid (m6)	10	Appelez-nous	-
014	23002293		Door, Soap Box (complete)	10		Immediately	$ 1,573.85
016	23002111		Washer (4)	10		Immediately	$ 221.87
018	23001673		Level, Soap Box	10	Appelez-nous	-
019	23001674		Injector	10	Appelez-nous	-
020	23001675		Nut	10	Appelez-nous	-
026	23001676		Hinge, Door	10	Appelez-nous	-
027	23002294		Hopper, Soap Dosing	10			$ 1,628.80
028	23001677		Nut (m6)	10	Appelez-nous	-
029	23001678		Bolt, Handle	10	Appelez-nous	-
030	23001679		Bolt (m6)	10	Appelez-nous	-
031	23001680		Shaft, Handle	10	Appelez-nous	-
032	23002658		Washer (12)	10	Appelez-nous	-
033	23001303		Nut (m12)	10	Appelez-nous	-
034	23001309		Washer (6.4) Lu	10	Appelez-nous	-
035	23001310		Nut, Self Locking (m6)	10	Appelez-nous	-
036	23001681		Spring	10	Appelez-nous	-
039	23001682		Screw (m4x6)	10	Appelez-nous	-
045	23002647		Screw (m8x25)	10	Appelez-nous	-
047	23002295		Holder	10	Appelez-nous	-
048	23002435		Nut (m8)	10	Appelez-nous	-
049	23002358		Washer M8	10	Appelez-nous	-
050	23003769		Washer M8	10	Appelez-nous	-
051	23002296		Label, Do Not Open	10	Appelez-nous	-
052	23002297		Label, Heatwarning	10	Appelez-nous	-
