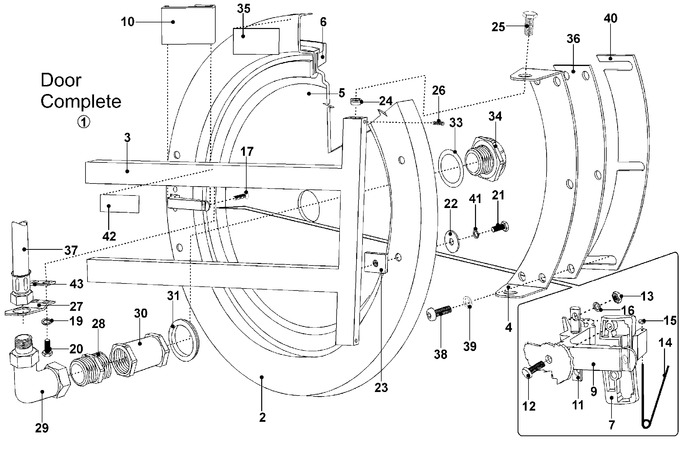

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23002260		Door (complete)	10	Appelez-nous	-
002	23002261		Ring, Door	10	Appelez-nous	-
003	23002262		Holder	10	Appelez-nous	-
004	23002263		Hinge	10	Appelez-nous	-
005	23003710		Door Glass	10	Appelez-nous	-
006	23001612		Seal, Door	10	Appelez-nous	-
007	23001370		Handle, Lever Plate	10	Appelez-nous	-
009	23001613		Handle, Door Lever	10	Appelez-nous	-
010	23001367		Lever, Handle	10	Appelez-nous	-
011	23001168		Shaft, Lever	10	Appelez-nous	-
012	23001175		Screw (m6x20 Stainless Steellu	10	Appelez-nous	-
013	23002471		Nut	10	Appelez-nous	-
014	23001169		Spring, Handle Lever	10	Appelez-nous	-
015	23002499		Washer	10	Appelez-nous	-
016	23002424		Washer	10	Appelez-nous	-
017	23001616		Screw (m4x6)	10	Appelez-nous	-
019	20007283		Washer   (Replaces: 23002357)	10			$ 504.91
020	23001617		Screw (m6x12)	10	Appelez-nous	-
021	23004114		Screw (m6x18)   (Replaces: 23001618)	10	Appelez-nous	-
022	23002265		Washer	10	Appelez-nous	-
023	23001619		Nut, Doorhandle	10	Appelez-nous	-
024	NLA		Piece, Insertion	10	Appelez-nous	-
025	23002266		Bolt (m10)	10	Appelez-nous	-
026	23001621		Screw (m4x12) Lu	10		Immediately	$ 311.03
027	23004004		Shower Support, Door	10	Appelez-nous	-
028	23004005		Fitting Adapter, Hose	10	Appelez-nous	-
029	23004006		Elbow Connection 3/4``	10	Appelez-nous	-
030	23004007		Doorshower Adapt Fitting	10	Appelez-nous	-
031	23001626		Washer, Shower	10	Appelez-nous	-
033	23001627		O Ring	10	Appelez-nous	-
034	23001628		Shower, Door	10	Appelez-nous	-
035	23001468		Sticker, Spin Direction	10			$ 870.39
036	23002267		Washer, Hinge	10	Appelez-nous	-
037	23004008		Shower Hose 3/4`` Braided Metal	10	Appelez-nous	-
038	23004001		Bolt M8 X 20	10	Appelez-nous	-
039	23002727		Washer (8) Lu	10	Appelez-nous	-
040	23002268		Washer, Distance	10	Appelez-nous	-
041	23002130		Washer (6)	10	Appelez-nous	-
042	23003950		Index Plate, Heat Warn	10	Appelez-nous	-
043	23004009		Nut, Speed	10	Appelez-nous	-
