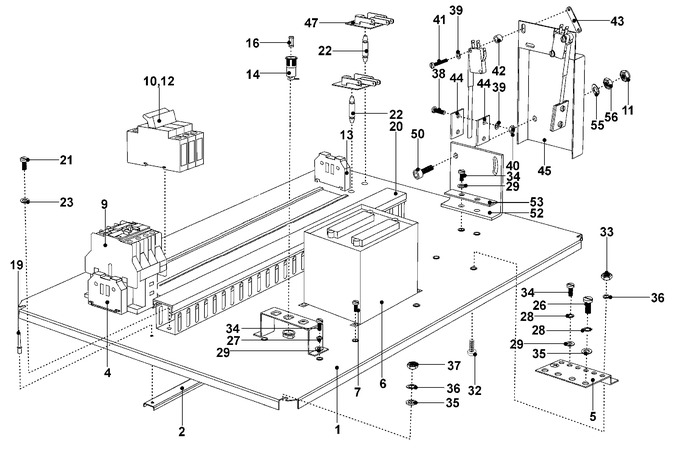

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | 23004067 | Mounting Plate | 10 |
|
- | ||||
| 002 | 23004068 | Reinforcement Plate | 10 |
|
- | ||||
| 004 | 23002110 | Terminal Wago | 10 |
|
$ 242.60 | ||||
| 005 | 23002099 | Cube, Earth | 10 |
|
- | ||||
| 006 | 23002348 | Transformer, Control Circuit | 10 |
|
$ 190.25 | ||||
| 007 | 23002398 | Screw (m4x16) | 10 |
|
- | ||||
| 009 | 23001102 | Contactor (lc1-d1801 M7) | 10 |
|
Immediately | $ 2,343.16 | |||
| 010 | 23003158 | Fuse, Disconnecter | 10 |
|
- | ||||
| 011 | 23003716 | Nut M5 | 10 |
|
- | ||||
| 012 | 23002802 | Disconnector, Fuse (pv10gg32a) | 10 |
|
- | ||||
| 013 | 23002110 | Terminal Wago | 10 |
|
$ 242.60 | ||||
| 014 | 23001462 | Holder, Fuse | 10 |
|
- | ||||
| 016 | WP23001508 | Fuse (1a) (Replaces: 23002918) | 10 |
|
$ 48.21 | ||||
| 019 | 23002187 | Bolt, Firing (3.2x7.9) | 10 |
|
- | ||||
| 020 | 23002103 | Trough, Cable | 10 |
|
- | ||||
| 021 | 23001609 | Screw (m4x12) | 10 |
|
- | ||||
| 022 | 23001099 | Pc Board Socket | 10 |
|
- | ||||
| 023 | 23002129 | Washer (m4) | 10 |
|
- | ||||
| 026 | 23002303 | Bolt (m6x12) | 10 |
|
- | ||||
| 027 | 23002111 | Washer (4) | 10 |
|
Immediately | $ 221.87 | |||
| 028 | 23001734 | Washer (m6) | 10 |
|
- | ||||
| 029 | 23002129 | Washer (m4) | 10 |
|
- | ||||
| 032 | 23002805 | Screw (m4x16) | 10 |
|
- | ||||
| 033 | 23003773 | Nut M6 | 10 |
|
- | ||||
| 034 | 23001748 | Screw (m4x12) | 10 |
|
- | ||||
| 035 | 23002424 | Washer | 10 |
|
- | ||||
| 036 | 20007283 | Washer (Replaces: 23002357) | 10 |
|
$ 504.91 | ||||
| 037 | 23003773 | Nut M6 | 10 |
|
- | ||||
| 038 | 23002398 | Screw (m4x16) | 10 |
|
- | ||||
| 039 | 23002950 | Lock Washer M4 | 10 |
|
- | ||||
| 040 | 23003666 | Nut (m4) | 10 |
|
- | ||||
| 041 | 23002092 | Bolt (m3x22) | 10 |
|
- | ||||
| 042 | 23002086 | Washer, Microswitch | 10 |
|
- | ||||
| 043 | 23004069 | Nut, Microswitch | 10 |
|
- | ||||
| 044 | 23003712 | Adjustment Weight | 10 |
|
- | ||||
| 045 | 23003713 | Balance Switch Holder | 10 |
|
- | ||||
| 047 | 23001146 | Coil (240v) | 10 |
|
- | ||||
| 050 | 23003714 | Bolt M5x16 | 10 |
|
- | ||||
| 052 | 23003713 | Balance Switch Holder | 10 |
|
- | ||||
| 053 | 23003715 | Washer, Balance Switch | 10 |
|
- | ||||
| 055 | 23002862 | Washer (5,3) | 10 |
|
- | ||||
| 056 | W10244602 | Nut (m4) Lu (Replaces: 23002452) | 10 |
|
$ 11.90 | ||||
| 057 | 23002077 | Switch, Out Of Balance | 10 |
|
- |
