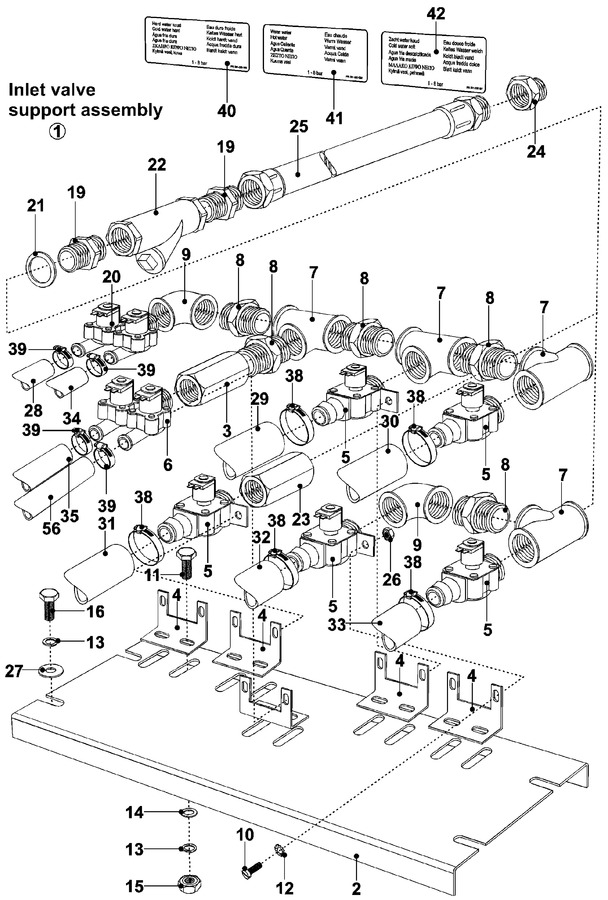

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | 23002313 | Inlet Valve Support Assy. (2w) | 10 |
|
- | ||||
| 002 | 23002314 | Support, Inlet Valve | 10 |
|
- | ||||
| 003 | 23001484 | Extension, Brass Pipe Thread | 10 |
|
- | ||||
| 004 | NLA | Support, Valve | 10 |
|
- | ||||
| 005 | 23001754 | Valve, One Way (3/4``) | 10 |
|
- | ||||
| 006 | WP23001755 | Valve, Four Way (3/4``) (Replaces: 23001755) | 10 |
|
$ 272.26 | ||||
| 006 | 23003876 | Valve 3-way | 10 |
|
- | ||||
| 007 | 23001485 | Tee, 3/4`` Pipe Thread (brass) | 10 |
|
- | ||||
| 008 | 23001482 | Nipple (3/4`` Pipe Thread) | 10 |
|
$ 747.91 | ||||
| 009 | 23001756 | Elbow (3/4``) | 10 |
|
- | ||||
| 010 | 23002423 | Screw (m4 X 10) | 10 |
|
- | ||||
| 011 | 23002649 | Screw (m6x10) | 10 |
|
- | ||||
| 012 | 23002400 | Washer | 10 |
|
- | ||||
| 013 | 20007283 | Washer, Spring Lock (6) (Replaces: 23002440) | 10 |
|
$ 504.91 | ||||
| 014 | 23003778 | Washer 12 | 10 |
|
- | ||||
| 015 | 23003773 | Nut M6 | 10 |
|
- | ||||
| 016 | 23004114 | Screw (m6 X16) (Replaces: 23002461) | 10 |
|
- | ||||
| 019 | 23001482 | Nipple (3/4`` Pipe Thread) | 10 |
|
$ 747.91 | ||||
| 020 | 23003875 | Valve, 2 Way | 10 |
|
$ 57.93 | ||||
| 021 | 23001483 | Washer (dia. 40 X 6.5 X 3) | 10 |
|
- | ||||
| 022 | 23003166 | Filter (complete) | 10 |
|
- | ||||
| 023 | 23004074 | Tube, Extension | 10 |
|
- | ||||
| 024 | 23001477 | Adapter (3/4`` Pipe To 3/4`` Hos | 10 |
|
$ 1,009.32 | ||||
| 025 | 23001486 | Hose, Connection | 10 |
|
$ 846.88 | ||||
| 026 | 23003666 | Nut (m4) | 10 |
|
- | ||||
| 027 | 23003012 | Washer Lu | 10 |
|
- | ||||
| 028 | 23001507 | Waterhose (green) | 10 |
|
- | ||||
| 029 | 23001740 | Hose (19x27) | 10 |
|
- | ||||
| 030 | 23001740 | Hose (19x27) | 10 |
|
- | ||||
| 031 | 23001740 | Hose (19x27) | 10 |
|
- | ||||
| 032 | 23001740 | Hose (19x27) | 10 |
|
- | ||||
| 033 | 23001740 | Hose (19x27) | 10 |
|
- | ||||
| 034 | 23001507 | Waterhose (green) | 10 |
|
- | ||||
| 035 | 23001507 | Waterhose (green) | 10 |
|
- | ||||
| 038 | WP616099 | Clamp, Hose (20-32) (Replaces: 23001262) | 10 |
|
Immediately | $ 7.03 | |||
| 039 | WP596669 | Clamp, Hose (Replaces: 23001506) | 10 |
|
Immediately | $ 7.56 | |||
| 040 | 23001471 | Sticker, Cold Soft Water | 10 |
|
$ 1,387.22 | ||||
| 041 | 23001469 | Sticker, Hot Water | 10 |
|
$ 1,212.53 | ||||
| 042 | NLA | Sticker, Cold Hard Water | 10 |
|
- | ||||
| 056 | 23001507 | Waterhose (green) | 10 |
|
- |
