01 - Frame And Cover Assembly


02 - Side Panels


03 - Outer Shell Assembly


04 - Inner Basket


05 - Door


06 - Door Lock Assembly


07 - Bearing Assembly


08 - Motor And Pulley


09 - Soap Box Assembly


10 - Control Panel


11 - Main Control


12 - Soap Injection & Accessories


13 - Water Valve Assembly


14 - Drain Valve Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

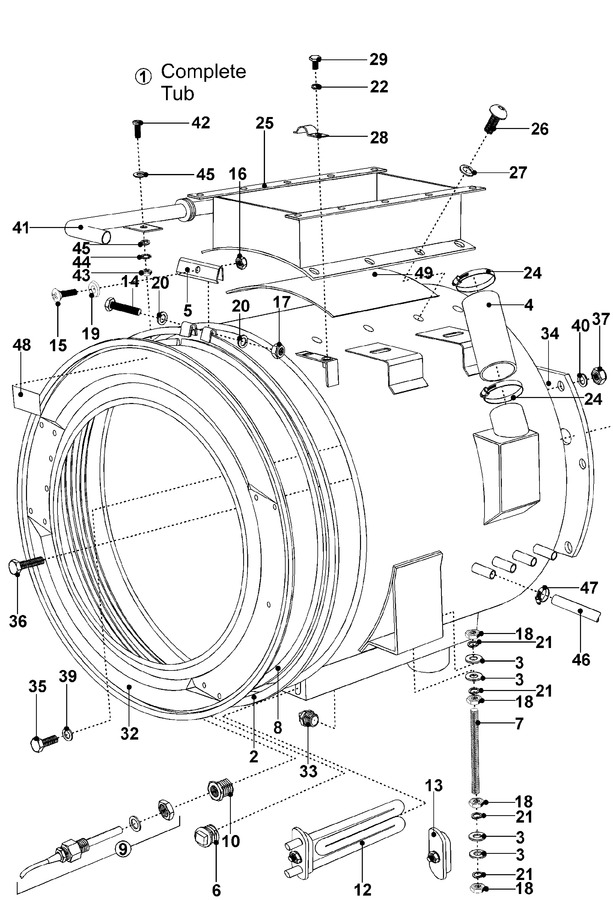

001	23002244		Outer Tub (complete)		Appelez-nous	-
002	23002245		Ring, Front Shield Fastening		Appelez-nous	-
003	23002246		Washer		Appelez-nous	-
004	23001589		Tube, Soap Box (1=210mm)		Appelez-nous	-
005	NLA		Ring, Cover Fastening		Appelez-nous	-
006	23002247		Bolt		Appelez-nous	-
007	23002248		Bolt, Tub Front Adjusting		Appelez-nous	-
008	23003999		Front Sheild Seal		Appelez-nous	-
009	23003964		Sensor, Temperature		Appelez-nous	-
010	23003807		Holder Thermostat Sensor		Appelez-nous	-
012	WPW10399309		Element, Heat 100-125lb   (Replaces: 23002482)				$ 174.01
013	23001594		Blind, Heating Element		Appelez-nous	-
014	23004000		Bolt M6 X 60		Appelez-nous	-
015	23001596		Bolt (m5x30)		Appelez-nous	-
016	23001597		Nut (m5)		Appelez-nous	-
017	23003773		Nut M6		Appelez-nous	-
018	23003676		Nut M12		Appelez-nous	-
019	23001204		Washer, Finishing (dia. 5)				$ 278.89
020	20007283		Washer, Spring Lock (6)   (Replaces: 23002440)				$ 504.91
021	23002658		Washer (12)		Appelez-nous	-
022	23003774		Washer 12		Appelez-nous	-
024	23001256		Clamp, Hose (60-80)		Appelez-nous	-
025	23002249		Support, Control Box (comp.)		Appelez-nous	-
026	23004001		Bolt M8 X 20		Appelez-nous	-
027	23003769		Washer M8		Appelez-nous	-
028	23004002		Clamp, Spray Hose		Appelez-nous	-
029	23003996		Bolt M6x18		Appelez-nous	-
032	23002251		Front, Washing Machine (comp.)		Appelez-nous	-
033	23002480		Plug (3/4)		Appelez-nous	-
034	23002252		Board, Carying		Appelez-nous	-
035	23001605		Screw (m8x30)		Appelez-nous	-
036	23002421		Screw (m8 X 15)				$ 1,050.80
037	23001607		Nut (m8)		Appelez-nous	-
039	23004003		Washer M8 (copper)		Appelez-nous	-
040	23003769		Washer M8		Appelez-nous	-
041	23002253		Tube, Wire Protection				$ 2,685.83
042	23002650		Screw (m6x12)		Appelez-nous	-
043	23003666		Nut (m4)		Appelez-nous	-
044	23002400		Washer		Appelez-nous	-
045	23002438		Washer (m6)		Appelez-nous	-
046	23002193		Hose		Appelez-nous	-
047	WP596669		Clamp, Hose   (Replaces: 23001506)			Immediately	$ 7.56
048	23002254		Label, Heatwarning		Appelez-nous	-
049	23002255		Al Aralamino		Appelez-nous	-
