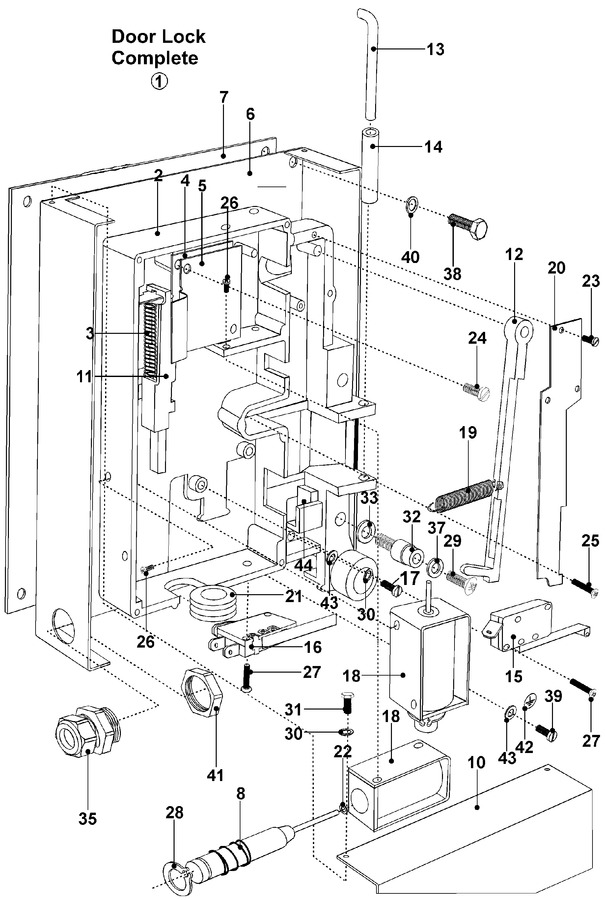

06 - Door Lock Assembly


07 - Bearing Assembly


08 - Motor And Pulley


09 - Soap Box Assembly


10 - Control Panel


11 - Main Control


12 - Soap Injection & Accessories


13 - Water Valve Assembly


14 - Drain Valve Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23004010		Door Lock Complete Lu	10	Appelez-nous	-
002	Y23002898		Ground, Plate Lock	10	Appelez-nous	-
003	23002903		Spring, Locking Part	10	Appelez-nous	-
004	NLA		Plate, Part 2	10	Appelez-nous	-
005	NLA		Plate, Part 1	10	Appelez-nous	-
006	23002269		Housing, Lock	10	Appelez-nous	-
007	23002270		Washer, Housing	10	Appelez-nous	-
008	23002903		Spring, Locking Part	10	Appelez-nous	-
010	23002271		Lock Cover (complete)	10	Appelez-nous	-
011	23001140		Bar, Locking	10	Appelez-nous	-
012	23002899		Handle, Locking Part	10	Appelez-nous	-
013	23001142		Retainer, Lock Tube (dia.4x45)	10	Appelez-nous	-
014	23001143		Lock Tube (dia. 4x23.5 Stnls)	10	Appelez-nous	-
015	23003112		Microswitch	10	Appelez-nous	-
016	23001145		Microswitch, Long Lever	10	Appelez-nous	-
017	23001748		Screw (m4x12)	10	Appelez-nous	-
018	23001146		Coil (240v)	10	Appelez-nous	-
019	23002900		Spring, Locking Part	10	Appelez-nous	-
020	23001149		Leaf Spring, Latch Bar	10	Appelez-nous	-
021	23001138		Bushing, Cable Passage	10	Appelez-nous	-
022	23001136		Washer (dia. 5.1 X 3.3 X 0.1)	10	Appelez-nous	-
023	23001134		Bolt (m3 X 6)	10			$ 5.60
024	23001070		Screw (m4x10)	10	Appelez-nous	-
025	23001633		Screw (m3x16)	10	Appelez-nous	-
026	23001634		Screw (m3x6)	10	Appelez-nous	-
027	23001635		Screw (m3x14)	10	Appelez-nous	-
028	23001137		Ring, Retaining (g10)	10	Appelez-nous	-
029	23001137		Ring, Retaining (g10)	10	Appelez-nous	-
030	23002129		Washer (m4)	10	Appelez-nous	-
031	23004011		Washer 4	10	Appelez-nous	-
032	23002272		Bolt	10	Appelez-nous	-
033	23002130		Washer (6)	10	Appelez-nous	-
035	23002196		Swivel, Cable	10	Appelez-nous	-
037	23003794		Washer	10	Appelez-nous	-
038	23002353		Screw (m6x12)	10	Appelez-nous	-
039	23002720		Screw (m4x8)	10	Appelez-nous	-
040	23002424		Washer	10	Appelez-nous	-
041	23002197		Nut	10	Appelez-nous	-
042	23002505		Plate, Earth	10	Appelez-nous	-
043	23002111		Washer (4)	10		Immediately	$ 221.87
044	NLA		Damping Tape	10	Appelez-nous	-
