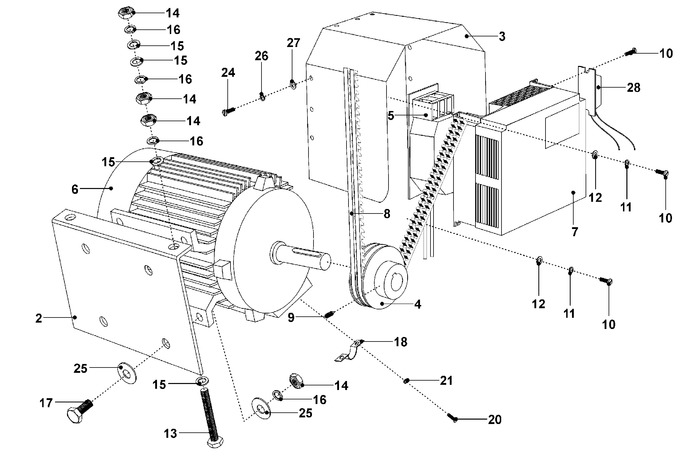

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
002	23004025		Motor Plate	10	Appelez-nous	-
003	23004017		Sheild Freq Invertor	10	Appelez-nous	-
004	23004018		Motor Pulley	10	Appelez-nous	-
005	23004019		Filter, Freq Invertor	10	Appelez-nous	-
006	23004020		Motor 3kw 200-240 V	10	Appelez-nous	-
007	23003989		Inverter 2.2kw 240v Lu	10	Appelez-nous	-
008	23001657		V-belt (2287mm)	10			$ 51.56
009	23001658		Screw (m6x10)	10			$ 18.77
010	23001704		Screw (m5x10)	10	Appelez-nous	-
011	23002862		Washer (5,3)	10	Appelez-nous	-
012	23002836		Washer (5)	10	Appelez-nous	-
013	23001660		Screw (m10x120)	10	Appelez-nous	-
014	23001661		Nut M10   (Replaces: 23003764)	10			$ 15.61
015	23003788		Washer	10	Appelez-nous	-
016	23002654		Washer (10)	10	Appelez-nous	-
017	23002987		Screw (m10x30)	10	Appelez-nous	-
018	23004021		Cable Socket	10	Appelez-nous	-
020	23002423		Screw (m4 X 10)	10	Appelez-nous	-
021	23002400		Washer	10	Appelez-nous	-
024	23004022		Bolt M5x10	10	Appelez-nous	-
025	23004023		Washer 10m	10	Appelez-nous	-
026	23002836		Washer (5)	10	Appelez-nous	-
027	23002862		Washer (5,3)	10	Appelez-nous	-
028	23004024		Brake Resistor 240v Only Used On Some Models	10	Appelez-nous	-
