01 - Frame And Cover Assembly


02 - Side Panels


03 - Outer Shell Assembly


04 - Inner Basket


05 - Door


06 - Door Lock Assembly


07 - Bearing Assembly


08 - Motor And Pulley


09 - Soap Box Assembly


10 - Control Panel


11 - Main Control


12 - Soap Injection & Accessories


13 - Water Valve Assembly


14 - Drain Valve Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

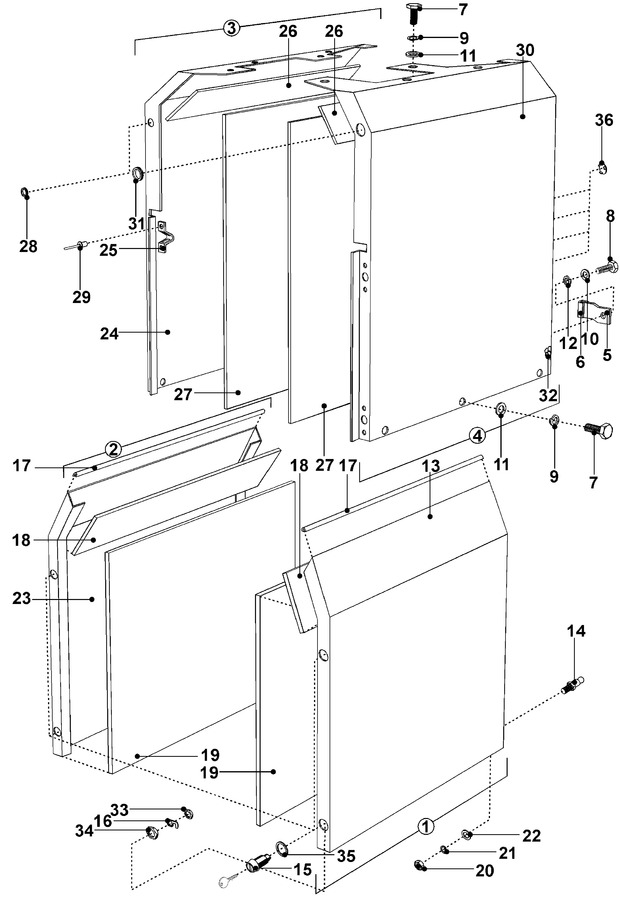

001	23002234		Panel, Front Rt. Side (comp.)		Appelez-nous	-
002	23002235		Panel, Front Left Side (comp.)		Appelez-nous	-
003	NLA		Panel, Back Left Side (comp.)		Appelez-nous	-
004	NLA		Panel, Back Right Side (comp.)		Appelez-nous	-
005	23002238		Clamp, Rear Cover		Appelez-nous	-
006	23002473		Rubber, Protective				$ 4.52
007	23002475		Bolt (m8x20)				$ 13.66
008	23002649		Screw (m6x10)		Appelez-nous	-
009	23003769		Washer M8		Appelez-nous	-
010	23003778		Washer 12		Appelez-nous	-
011	23002439		Washer, Spring Lock (8)		Appelez-nous	-
012	20007283		Washer, Spring Lock (6)   (Replaces: 23002440)				$ 504.91
013	NLA		Panel, Front Side (rt.)		Appelez-nous	-
014	23001332		Pin, Srv		Appelez-nous	-
015	23001583		Device, Locking		Appelez-nous	-
016	23001009		Lock Hook (short)		Appelez-nous	-
017	23002473		Rubber, Protective				$ 4.52
018	23003998		Antivibration Sheet		Appelez-nous	-
019	23003998		Antivibration Sheet		Appelez-nous	-
020	W10244602		Nut (m4) Lu   (Replaces: 23002452)				$ 11.90
021	23001585		Washer (5.3)		Appelez-nous	-
022	23002836		Washer (5)		Appelez-nous	-
023	23002240		Panel, Front Side (lt)		Appelez-nous	-
024	23002241		Panel, Back Side (lt)		Appelez-nous	-
025	23001032		Clamp, Srv		Appelez-nous	-
026	23003998		Antivibration Sheet		Appelez-nous	-
027	23003998		Antivibration Sheet		Appelez-nous	-
028	23001587		Protection, Rubber (15x2)		Appelez-nous	-
029	23001033		Rivets, Blind (dia. 3.2 X 8)lu		Appelez-nous	-
030	23002242		Panel, Back Side (rt.)		Appelez-nous	-
031	23002473		Rubber, Protective				$ 4.52
032	23001575		Nut, Insert (m6)		Appelez-nous	-
033	23001011		Nut		Appelez-nous	-
034	23001008		Lock Nut (large)				$ 186.62
035	23001007		Washer, Fiber		Appelez-nous	-
036	23002243		Plug, Universal		Appelez-nous	-
