SELECT A DIAGRAM

01 - Frame And Cover Assembly


02 - Side Panels


03 - Outer Shell Assembly


04 - Inner Basket


05 - Door


06 - Door Lock Assembly


07 - Bearing Assembly


08 - Motor And Pulley


09 - Soap Box Assembly


10 - Control Panel


11 - Main Control


12 - Soap Injection & Accessories


13 - Water Valve Assembly


14 - Drain Valve Assembly

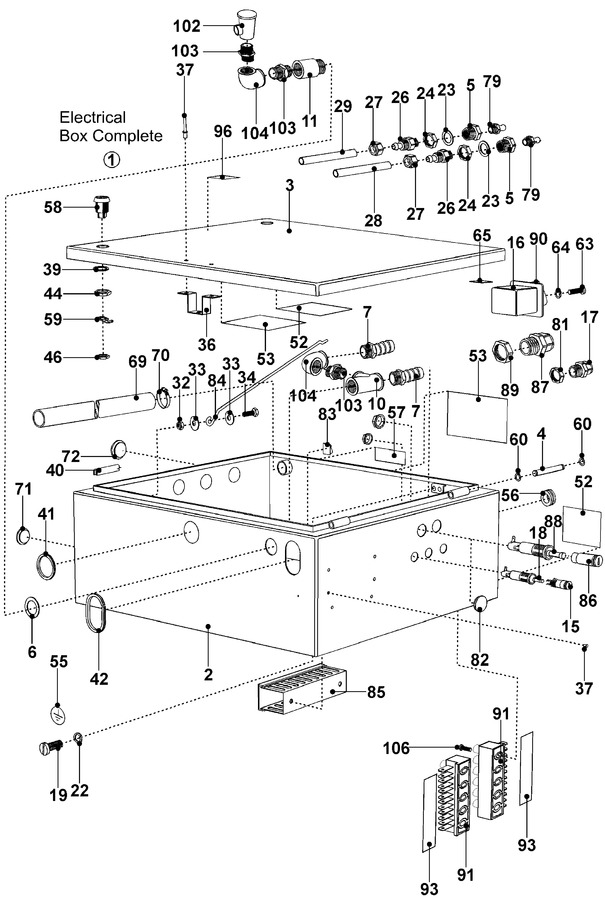

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23004070		Electrical Box Complete	10	Appelez-nous	-
002	NLA		Box, Electrical	10	Appelez-nous	-
003	NLA		Cover, Electrical Box	10	Appelez-nous	-
004	23001690		Screw, Distance (m8)	10	Appelez-nous	-
005	23001726		Adaptor, Lubrication	10	Appelez-nous	-
006	23001483		Washer (dia. 40 X 6.5 X 3)	10	Appelez-nous	-
007	23001727		Connection, Tube	10	Appelez-nous	-
010	23001485		Tee, 3/4`` Pipe Thread (brass)	10	Appelez-nous	-
011	23001729		Tube, Extension	10	Appelez-nous	-
015	23001462		Holder, Fuse	10	Appelez-nous	-
016	23004071		Main Switch-32 A	10	Appelez-nous	-
017	23002196		Swivel, Cable	10	Appelez-nous	-
018	23001463		Fuse (2a)	10	Appelez-nous	-
019	23001733		Screw (m6x10)	10	Appelez-nous	-
022	23002425		Washer, Lock	10			$ 473.30
023	23002246		Washer	10	Appelez-nous	-
024	23001736		Nut (m14x1.5)	10	Appelez-nous	-
026	23001737		Branch, Connecting (m10x1)	10	Appelez-nous	-
027	23001738		Nut, Traveling (m12x1.5)	10	Appelez-nous	-
028	23003213		Hose	10	Appelez-nous	-
029	23003213		Hose	10	Appelez-nous	-
032	23002471		Nut	10	Appelez-nous	-
033	23003012		Washer Lu	10	Appelez-nous	-
034	23002463		Screw (m6 X 30)	10	Appelez-nous	-
036	23004072		Lid Supp Brac	10	Appelez-nous	-
037	23004073		Rivet 3,2x6	10	Appelez-nous	-
039	23001007		Washer, Fiber	10	Appelez-nous	-
040	23002473		Rubber, Protective	10			$ 4.52
041	23002473		Rubber, Protective	10			$ 4.52
042	23002473		Rubber, Protective	10			$ 4.52
044	23001008		Lock Nut (large)	10			$ 186.62
046	23001011		Nut	10	Appelez-nous	-
052	23001465		Sticker, Electricity Warning	10	Appelez-nous	-
053	23001550		Label, Earth	10	Appelez-nous	-
055	23002505		Plate, Earth	10	Appelez-nous	-
057	23002307		Label, Lubricating	10	Appelez-nous	-
058	23001006		Lock, Top Panel	10	Appelez-nous	-
059	23001009		Lock Hook (short)	10	Appelez-nous	-
060	23001056		Washer (4.3)	10	Appelez-nous	-
063	23001748		Screw (m4x12)	10	Appelez-nous	-
064	23002400		Washer	10	Appelez-nous	-
065	23002308		Label, Warning Under Current	10	Appelez-nous	-
066	23002438		Washer (m6)	10	Appelez-nous	-
069	23002309		Hose, Air-venting	10	Appelez-nous	-
070	23001750		Ring, Clamp (40-60)	10	Appelez-nous	-
071	23001476		Plug, Water Inlet	10			$ 705.49
072	23001604		Plug (3/4``)	10	Appelez-nous	-
079	23001753		Nipple, Lubricating	10	Appelez-nous	-
081	23002197		Nut	10	Appelez-nous	-
082	23002153		Plug	10	Appelez-nous	-
083	23002454		Hook	10	Appelez-nous	-
084	23001330		Support Rod, Top Panel	10	Appelez-nous	-
085	23001551		Gutter, Cable (plastic)	10	Appelez-nous	-
086	23002210		Holder, Fuse	10	Appelez-nous	-
087	23002211		Swivel, Cable	10	Appelez-nous	-
088	23002310		Fuse (4a)	10	Appelez-nous	-
089	23002212		Nut	10	Appelez-nous	-
090	23003139		Controller	10	Appelez-nous	-
091	23002154		Board, Terminal (6 Poles)	10	Appelez-nous	-
093	23002218		Label, Terminal Board	10	Appelez-nous	-
096	23002312		Label, Flash	10	Appelez-nous	-
102	23003707		Check Valve	10	Appelez-nous	-
103	23001482		Nipple (3/4`` Pipe Thread)	10			$ 747.91
104	23001756		Elbow (3/4``)	10	Appelez-nous	-
106	23003115		Screw (m3x14)	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
