SELECT A DIAGRAM

01 - Frame & Cover Assembly


02 - Side Panel


03 - Outer Shell Assembly


04 - Inner Basket


05 - Door


06 - Door Lock Assembly


07 - Bearing Assembly


08 - Motor & Pulley


09 - Soap Box Assembly


10 - Control Panel


11 - Main Control


12 - Soap Injection & Accessories


13 - Water Valve Assembly


14 - Drain Valve Assembly

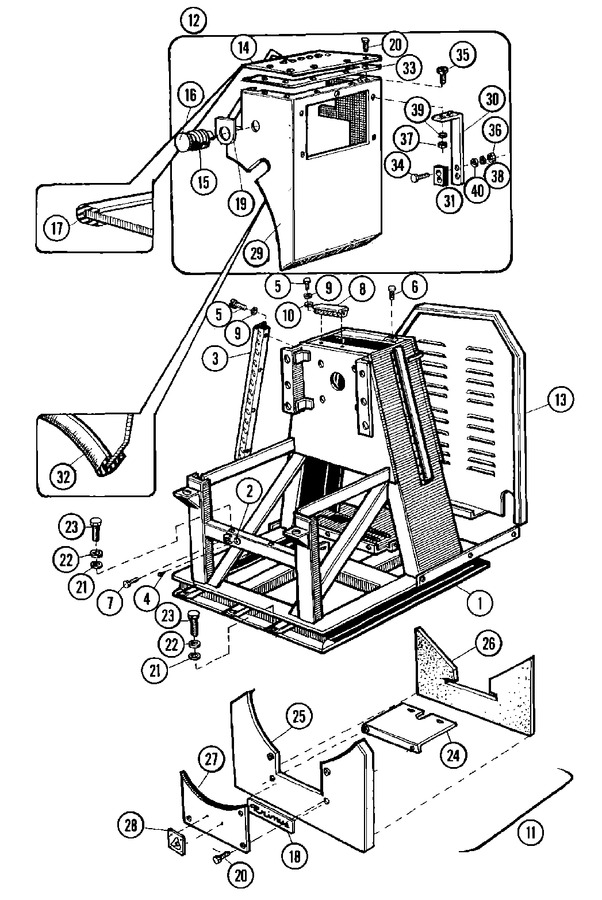

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23002224		Frame (complete)	10	Appelez-nous	-
002	23001550		Label, Earth	10	Appelez-nous	-
003	23001551		Gutter, Cable (plastic)	10	Appelez-nous	-
004	23001552		Rivet, Blind (2,6x6)	10	Appelez-nous	-
005	23001361		Bolt M4x10	10	Appelez-nous	-
006	20002815		Bolt (m6x12)   (Replaces: 23001157)	10			$ 188.18
007	23001555		Bolt (m8x14)	10	Appelez-nous	-
008	23001551		Gutter, Cable (plastic)	10	Appelez-nous	-
009	23001013		Washer (m4)	10	Appelez-nous	-
010	23001056		Washer (4.3)	10	Appelez-nous	-
011	23002223		Front Panel Assembly	10	Appelez-nous	-
012	23002225		Soap Box Cover Assembly	10	Appelez-nous	-
013	23002226		Cover, Rear	10	Appelez-nous	-
014	23002227		Lid, Soap Box Cover	10	Appelez-nous	-
015	23002331		Bloc, Emergency (w/lamp)   (Replaces: 23001075)	10	Appelez-nous	-
016	23002331		Knob, Emergency   (Replaces: 23001078)	10	Appelez-nous	-
017	23001088		Trim, Rubber	10	Appelez-nous	-
018	23002185		Shield, Primus	10	Appelez-nous	-
019	NLA		Shield, Emergency Stop	10	Appelez-nous	-
020	23001374		Bolt (m6 X 20)	10	Appelez-nous	-
021	23001263		Washer (8.4)	10	Appelez-nous	-
022	23001265		Washer M8	10	Appelez-nous	-
023	23001264		Bolt M8x20	10	Appelez-nous	-
024	23002228		Support, Front Panel	10	Appelez-nous	-
025	23002229		Panel, Front	10	Appelez-nous	-
026	NLA		Sheet, Antivibration	10	Appelez-nous	-
027	23002231		Cover	10	Appelez-nous	-
028	NLA		Label (electric Heating)	10	Appelez-nous	-
029	NLA		Plate, Soap Box Cover	10	Appelez-nous	-
030	23002233		Holder, Rear Relay	10	Appelez-nous	-
031	23001566		Switch, Magnetic	10	Appelez-nous	-
032	23001088		Trim, Rubber	10	Appelez-nous	-
033	23001567		Sheet, Anti-vibration	10	Appelez-nous	-
034	NLA		Bolt (m3x12)	10	Appelez-nous	-
035	NLA		Screw (m4x10)	10	Appelez-nous	-
036	23001053		Nut (m3)	10	Appelez-nous	-
037	23001014		Nut M4	10	Appelez-nous	-
038	23001056		Washer (4.3)	10	Appelez-nous	-
039	23001573		Washer (4.3)	10	Appelez-nous	-
040	23001054		Washer (3)	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
