01 - Frame & Cover Assembly


02 - Side Panel


03 - Outer Shell Assembly


04 - Inner Basket


05 - Door


06 - Door Lock Assembly


07 - Bearing Assembly


08 - Motor & Pulley


09 - Soap Box Assembly


10 - Control Panel


11 - Main Control


12 - Soap Injection & Accessories


13 - Water Valve Assembly


14 - Drain Valve Assembly

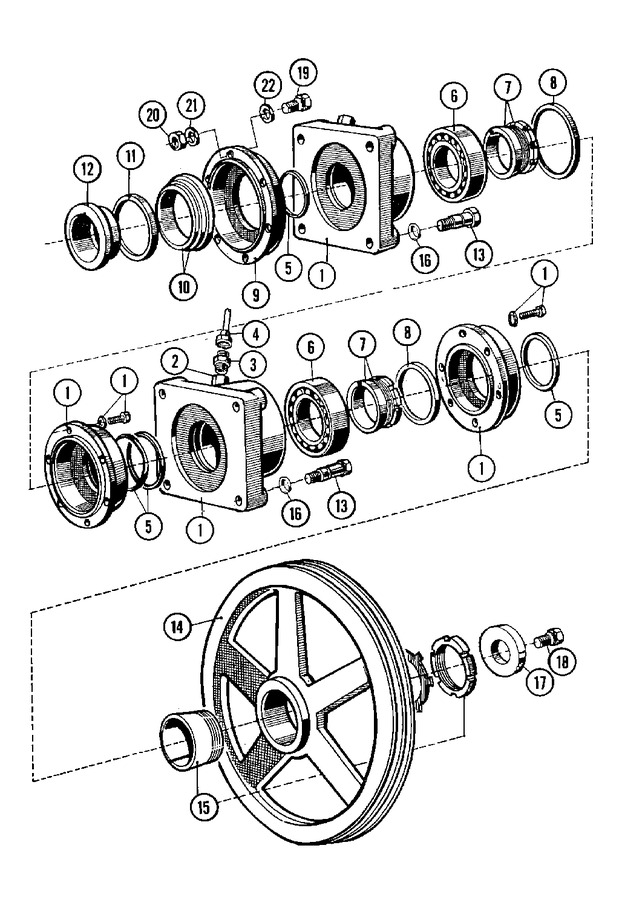

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	WP23004016		House, Bearing   (Replaces: 23001644)	10			$ 2,367.02
002	23002273		Adapter	10	Appelez-nous	-
003	23001645		Adaptor, Grease Hose	10	Appelez-nous	-
004	23001646		Fixation, Grease Hose	10	Appelez-nous	-
005	23001647		Ring, Felt	10	Appelez-nous	-
006	23001648		Bearing	10	Appelez-nous	-
007	23001649		Bushing	10	Appelez-nous	-
008	23001650		Ring	10	Appelez-nous	-
009	23002198		Case, Joint	10	Appelez-nous	-
010	23001213		Ring, Axial Joint	10	Appelez-nous	-
011	23001212		Shaft, Ring	10	Appelez-nous	-
012	23002274		Flange, Seal	10	Appelez-nous	-
013	23002199		Bolt (m18x70)	10	Appelez-nous	-
014	23002275		Pulley, Belt	10	Appelez-nous	-
015	23001653		Bushing	10	Appelez-nous	-
016	23002276		Washer (18x10)	10	Appelez-nous	-
017	23002277		Washer	10	Appelez-nous	-
018	23002278		Bolt (m16x30)	10	Appelez-nous	-
019	23002279		Bolt (m6x20)	10	Appelez-nous	-
020	23002280		Nut M6	10	Appelez-nous	-
021	23002281		Washer (6-copper)	10	Appelez-nous	-
022	23002282		Washer (6)	10	Appelez-nous	-
