SELECT A DIAGRAM

01 - Frame & Cover Assembly


02 - Side Panel


03 - Outer Shell Assembly


04 - Inner Basket


05 - Door


06 - Door Lock Assembly


07 - Bearing Assembly


08 - Motor & Pulley


09 - Soap Box Assembly


10 - Control Panel


11 - Main Control


12 - Soap Injection & Accessories


13 - Water Valve Assembly


14 - Drain Valve Assembly

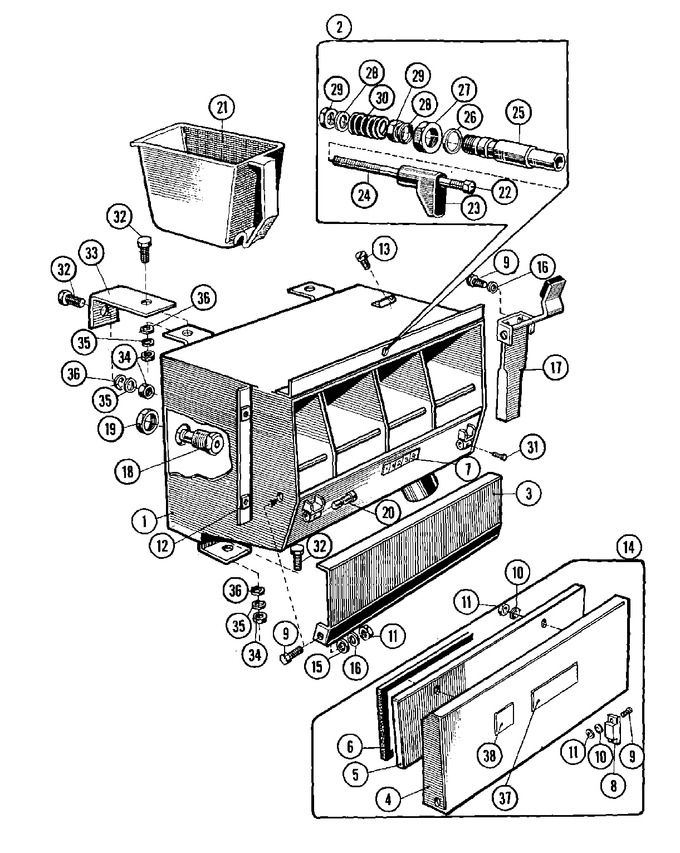

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	Y23002289		Soap Box Assembly	10	Appelez-nous	-
002	23001665		Lock, Soap Box	10	Appelez-nous	-
003	Y23002290		Cover	10	Appelez-nous	-
004	23002291		Door, Soap Box	10			$ 356.14
005	23002292		Insert, Door	10	Appelez-nous	-
006	23001666		Seal (10x20x1130) Lu	10	Appelez-nous	-
007	23001667		Label, Soap Box	10	Appelez-nous	-
008	23001668		Contact, Magnetic	10	Appelez-nous	-
009	23001669		Screw (m4x8)	10	Appelez-nous	-
010	23001670		Washer (m4)	10	Appelez-nous	-
011	23001014		Nut M4	10	Appelez-nous	-
012	23001339		Nut, Locking (m6)	10	Appelez-nous	-
013	23001070		Bolt (m4x10)	10	Appelez-nous	-
014	23002293		Door, Soap Box (complete)	10		Immediately	$ 1,573.85
015	23001056		Washer (4.3)	10	Appelez-nous	-
016	23001636		Washer	10	Appelez-nous	-
017	23001673		Level, Soap Box	10	Appelez-nous	-
018	23001674		Injector	10	Appelez-nous	-
019	23001675		Nut	10	Appelez-nous	-
020	23001676		Hinge, Door	10	Appelez-nous	-
021	23002294		Hopper, Soap Dosing	10			$ 1,628.80
022	23001677		Nut (m6)	10	Appelez-nous	-
023	23001678		Bolt, Handle	10	Appelez-nous	-
024	23001679		Bolt (m6)	10	Appelez-nous	-
025	23001680		Shaft, Handle	10	Appelez-nous	-
026	23001419		Washer (12)	10	Appelez-nous	-
027	23001303		Nut (m12)	10	Appelez-nous	-
028	23001309		Washer (6.4) Lu	10	Appelez-nous	-
029	23001310		Nut, Self Locking (m6)	10	Appelez-nous	-
030	23001681		Spring	10	Appelez-nous	-
031	23001682		Screw (m4x6)	10	Appelez-nous	-
032	23001305		Bolt M8x25	10	Appelez-nous	-
033	23002295		Holder	10	Appelez-nous	-
034	23001266		Nut M8	10	Appelez-nous	-
035	23001265		Washer M8	10	Appelez-nous	-
036	23001263		Washer (8.4)	10	Appelez-nous	-
037	23002296		Label, Do Not Open	10	Appelez-nous	-
038	23002297		Label, Heatwarning	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
