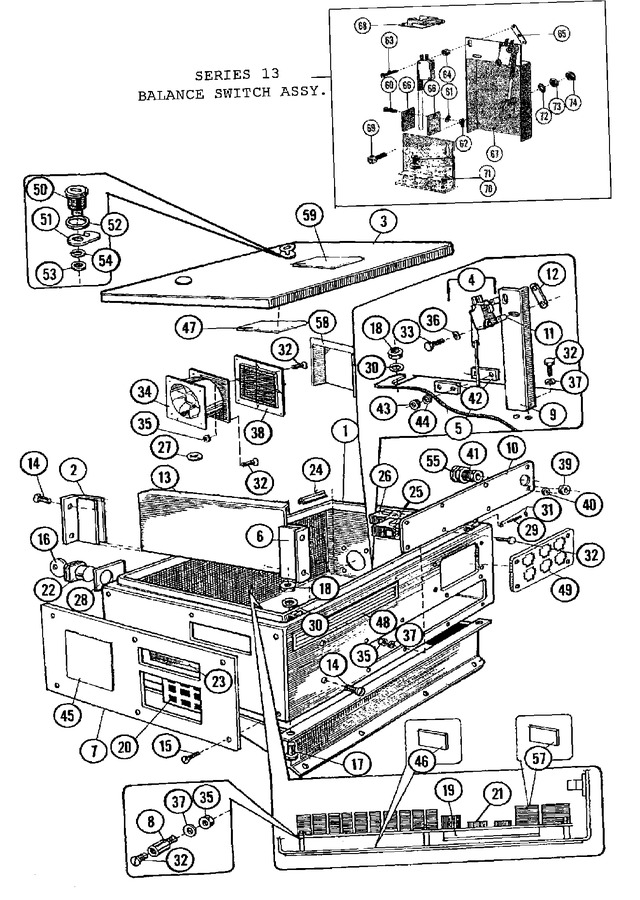

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | NLA | Box, Control (complete) | 10 |
|
- | ||||
| 002 | 23001684 | Holder, Screening Plate | 10 |
|
- | ||||
| 003 | 23002299 | Cover, Box (complete) | 10 |
|
- | ||||
| 004 | 23002077 | Switch, Out Of Balance | 10 |
|
- | ||||
| 005 | 23002158 | Plate, Mounting | 10 |
|
- | ||||
| 006 | 23001685 | Holder, Screening Plate | 10 |
|
- | ||||
| 007 | 23002159 | Plate, Facia | 10 |
|
- | ||||
| 008 | 23002084 | Holder, Programmer | 10 |
|
- | ||||
| 009 | 23002160 | Holder, Balance Switch | 10 |
|
- | ||||
| 010 | NLA | Holder, Terminal Board | 10 |
|
- | ||||
| 011 | NLA | Washer, Microswitch | 10 |
|
- | ||||
| 012 | NLA | Nut, Microswitch | 10 |
|
- | ||||
| 013 | NLA | Plate, Screening | 10 |
|
- | ||||
| 014 | 23002162 | Bolt (m6x10) | 10 |
|
- | ||||
| 015 | 23002300 | Bolt (m4x8) | 10 |
|
- | ||||
| 016 | 23002219 | Device, Operating | 10 |
|
- | ||||
| 017 | NLA | Bolt (m8x15) | 10 |
|
- | ||||
| 018 | 23002034 | Nut (m8) | 10 |
|
- | ||||
| 019 | 23002201 | Microprocessor(mkiia-20) | 10 |
|
- | ||||
| 020 | 23001692 | Keyboard (membrane Switch) | 10 |
|
- | ||||
| 021 | 23003744 | Controller, Apl280ns V1.04 | 10 |
|
- | ||||
| 021 | 23003745 | Controller, Apl280ne V1.04 | 10 |
|
- | ||||
| 022 | 23001082 | Block, Programming Key | 10 |
|
- | ||||
| 023 | 23002163 | Plexi, Display | 10 |
|
- | ||||
| 024 | 23001088 | Trim, Rubber | 10 |
|
- | ||||
| 025 | 23001721 | Board, Terminal (15 Poles) | 10 |
|
- | ||||
| 026 | 23001722 | Board, Terminal (9 Poles) | 10 |
|
- | ||||
| 027 | NLA | Label, Earth | 10 |
|
- | ||||
| 028 | NLA | Label, Keyswitch | 10 |
|
- | ||||
| 029 | 23001690 | Hinge, Cover | 10 |
|
- | ||||
| 030 | 23001263 | Washer (8.4) | 10 |
|
- | ||||
| 031 | 23001056 | Washer (4.3) | 10 |
|
- | ||||
| 032 | 23001361 | Bolt (m4x16) | 10 |
|
- | ||||
| 033 | NLA | Screw (m3x22) | 10 |
|
- | ||||
| 034 | 23002165 | Fan | 10 |
|
$ 297.78 | ||||
| 035 | 23001055 | Nut (m4) | 10 |
|
- | ||||
| 036 | 23001056 | Washer (3.2) | 10 |
|
- | ||||
| 037 | 23001708 | Washer (4.3) | 10 |
|
- | ||||
| 038 | 23002166 | Grate, Air | 10 |
|
- | ||||
| 039 | 23001091 | Passage, Cable (8x2) | 10 |
|
- | ||||
| 040 | 23002167 | Grommet, Rubber | 10 |
|
- | ||||
| 041 | 23002196 | Swivel, Cable | 10 |
|
- | ||||
| 042 | 23001712 | Weight, Adjustment | 10 |
|
- | ||||
| 043 | 23001053 | Nut (m3) | 10 |
|
- | ||||
| 044 | 23001054 | Locking Washer | 10 |
|
- | ||||
| 045 | 23002097 | Label, Program | 10 |
|
- | ||||
| 046 | 23002025 | Label, Electrostatic | 10 |
|
- | ||||
| 047 | 23001550 | Label, Earth | 10 |
|
- | ||||
| 048 | 23002168 | Grate, Air (305x60x13) | 10 |
|
- | ||||
| 049 | 23002169 | Holder, Terminal Boards | 10 |
|
- | ||||
| 050 | 23001006 | Lock, Top Panel | 10 |
|
- | ||||
| 051 | 23001009 | Hook, Lock (short) | 10 |
|
- | ||||
| 052 | 23001008 | Nut, Lock (large) | 10 |
|
$ 186.62 | ||||
| 053 | 23001011 | Nut | 10 |
|
- | ||||
| 054 | 23001007 | Washer, Fiber | 10 |
|
- | ||||
| 055 | 23002197 | Nut | 10 |
|
- | ||||
| 057 | NLA | Labels, Description | 10 |
|
- | ||||
| 058 | 23002222 | Cover, Fan | 10 |
|
- | ||||
| 059 | 23002301 | Label, El.flash | 10 |
|
- | ||||
| 060 | 23002398 | Screw (m4x16) | 13 |
|
- | ||||
| 061 | 23002503 | Washer | 13 |
|
- | ||||
| 062 | 23003666 | Nut (m4) | 13 |
|
- | ||||
| 063 | 23002092 | Bolt (m3x22) | 13 |
|
- | ||||
| 064 | 23002086 | Washer, Microswitch | 13 |
|
- | ||||
| 065 | 23003711 | Microswitch Nut | 13 |
|
- | ||||
| 066 | 23003712 | Adjustment Weight | 13 |
|
- | ||||
| 067 | 23003713 | Balance Switch Holder | 13 |
|
- | ||||
| 067 | 23003977 | Microswitch | 13 |
|
- | ||||
| 068 | 23001146 | Coil (240v) | 13 |
|
- | ||||
| 069 | 23003714 | Bolt M5x16 | 13 |
|
- | ||||
| 070 | 23003713 | Balance Switch Holder | 13 |
|
- | ||||
| 071 | 23003715 | Washer, Balance Switch | 13 |
|
- | ||||
| 072 | 23002862 | Washer (5,3) | 13 |
|
- | ||||
| 073 | W10244602 | Nut (m4) Lu (Replaces: 23002452) | 13 |
|
$ 11.90 | ||||
| 074 | 23003716 | Nut M5 | 13 |
|
- |
