SELECT A DIAGRAM

01 - Frame & Cover Assembly


02 - Side Panel


03 - Outer Shell Assembly


04 - Inner Basket


05 - Door


06 - Door Lock Assembly


07 - Bearing Assembly


08 - Motor & Pulley


09 - Soap Box Assembly


10 - Control Panel


11 - Main Control


12 - Soap Injection & Accessories


13 - Water Valve Assembly


14 - Drain Valve Assembly

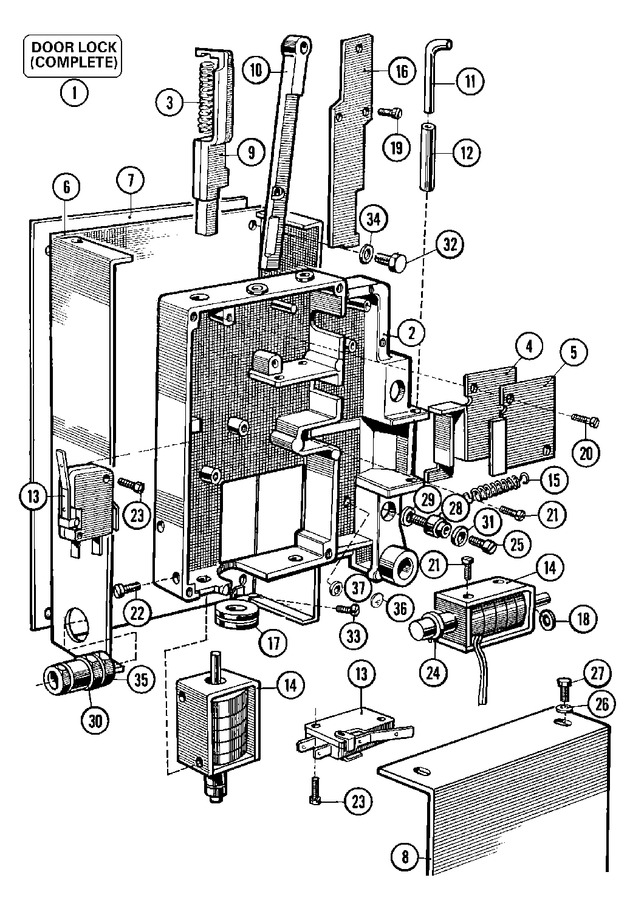

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23001632		Doorlock (complete)	10	Appelez-nous	-
002	23001139		Housing, Door Lock	10	Appelez-nous	-
003	23001160		Spring, Locking Bar	10	Appelez-nous	-
004	NLA		Plate, Decoupling	10	Appelez-nous	-
005	NLA		Plate, Decoupling	10	Appelez-nous	-
006	23002269		Housing, Lock	10	Appelez-nous	-
007	23002270		Washer, Housing	10	Appelez-nous	-
008	23002271		Lock Cover (complete)	10	Appelez-nous	-
009	23001140		Bar, Locking	10	Appelez-nous	-
010	23001141		Bar, Handle Latch	10	Appelez-nous	-
011	23001142		Retainer, Lock Tube (dia.4x45)	10	Appelez-nous	-
012	23001143		Tube, Lock (dia. 4x23.5 Stnls)	10	Appelez-nous	-
013	23001144		Microswitch, Short Lever	10	Appelez-nous	-
014	23001146		Coil (240v)	10	Appelez-nous	-
015	23001148		Coil Spring, Handle Latch Bar	10	Appelez-nous	-
016	23001149		Leaf Spring, Latch Bar	10	Appelez-nous	-
017	23001138		Bushing, Cable Passage	10	Appelez-nous	-
018	23001136		Washer (dia. 5.1 X 3.3 X 0.1)	10	Appelez-nous	-
019	23001134		Bolt (m3 X 6)	10			$ 5.60
020	23001070		Screw (m4x10)	10	Appelez-nous	-
021	23001633		Screw (m3x16)	10	Appelez-nous	-
022	23001634		Screw (m3x6)	10	Appelez-nous	-
023	23001635		Screw (m3x14)	10	Appelez-nous	-
024	23001137		Ring, Retaining (g10)	10	Appelez-nous	-
025	23001137		Screw (m5x20)	10	Appelez-nous	-
026	23001636		Washer	10	Appelez-nous	-
027	23001637		Screw (m4x5)	10	Appelez-nous	-
028	23002272		Bolt	10	Appelez-nous	-
029	23001158		Washer M6	10	Appelez-nous	-
030	23002196		Swivel, Cable	10	Appelez-nous	-
031	23004485		Washer (m5)   (Replaces: 23001640)	10	Appelez-nous	-
032	23004114		Screw (m6x16)   (Replaces: 23001641)	10	Appelez-nous	-
033	23001070		Bolt (m4x10)	10	Appelez-nous	-
034	23001643		Washer (m6)	10	Appelez-nous	-
035	23002197		Nut	10	Appelez-nous	-
036	NLA		Label, Earth	10	Appelez-nous	-
037	23001636		Washer	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
