SELECT A DIAGRAM

01 - Frame & Cover Assembly


02 - Side Panel


03 - Outer Shell Assembly


04 - Inner Basket


05 - Door


06 - Door Lock Assembly


07 - Bearing Assembly


08 - Motor & Pulley


09 - Soap Box Assembly


10 - Control Panel


11 - Main Control


12 - Soap Injection & Accessories


13 - Water Valve Assembly


14 - Drain Valve Assembly

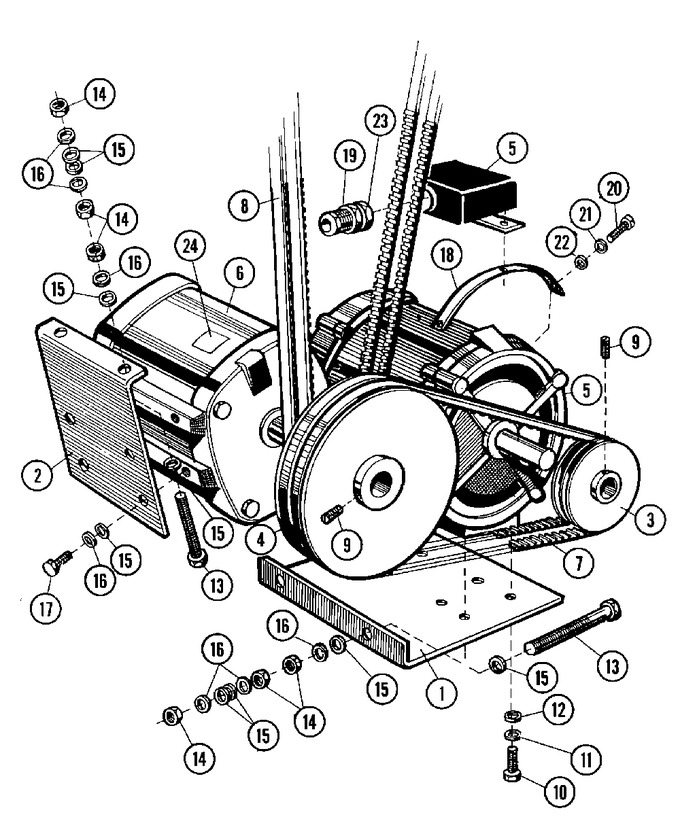

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23002283		Plate, Washmotor Adjusting	10	Appelez-nous	-
002	23002284		Plate, Spinmotor Adjusting	10	Appelez-nous	-
003	23002285		Pulley, Washmotor	10	Appelez-nous	-
003	23002285		Pulley, Washmotor	13	Appelez-nous	-
004	23002286		Pulley, Spinmotor (60hz)	10	Appelez-nous	-
004	23002717		Screw (m3x6)	13	Appelez-nous	-
005	23001654		Washmotor (60hz)	10	Appelez-nous	-
006	23001655		Spinmotor (60hz)	10	Appelez-nous	-
007	23002200		V-belt, Motor	10			$ 62.99
008	23001657		V-belt (2287mm)	10			$ 51.56
009	23001658		Screw (m6x10)	10			$ 18.77
010	23001305		Bolt M8x25	10	Appelez-nous	-
011	23001265		Washer M8	10	Appelez-nous	-
012	23001263		Washer (8.4)	10	Appelez-nous	-
013	23001660		Screw (m10x120)	10	Appelez-nous	-
014	DC60-50145A		Nut M10   (Replaces: 23001661)	10			$ 2.39
015	23001400		Washer (10)	10	Appelez-nous	-
016	NLA		Washer (10.5)	10	Appelez-nous	-
017	23001662		Bolt (m10x30)	10	Appelez-nous	-
018	NLA		Holder, Motor Terminal Board	10	Appelez-nous	-
019	23002196		Swivel, Cable	10	Appelez-nous	-
020	NLA		Screw (m6x16)	10	Appelez-nous	-
021	23001582		Washer (6)	10	Appelez-nous	-
022	23001580		Washer (6.4)	10	Appelez-nous	-
023	23002197		Nut	10	Appelez-nous	-
024	NLA		Shield, Motor	10	Appelez-nous	-
