SELECT A DIAGRAM

01 - Frame & Cover Assembly


02 - Side Panel


03 - Outer Shell Assembly


04 - Inner Basket


05 - Door


06 - Door Lock Assembly


07 - Bearing Assembly


08 - Motor & Pulley


09 - Soap Box Assembly


10 - Control Panel


11 - Main Control


12 - Soap Injection & Accessories


13 - Water Valve Assembly


14 - Drain Valve Assembly

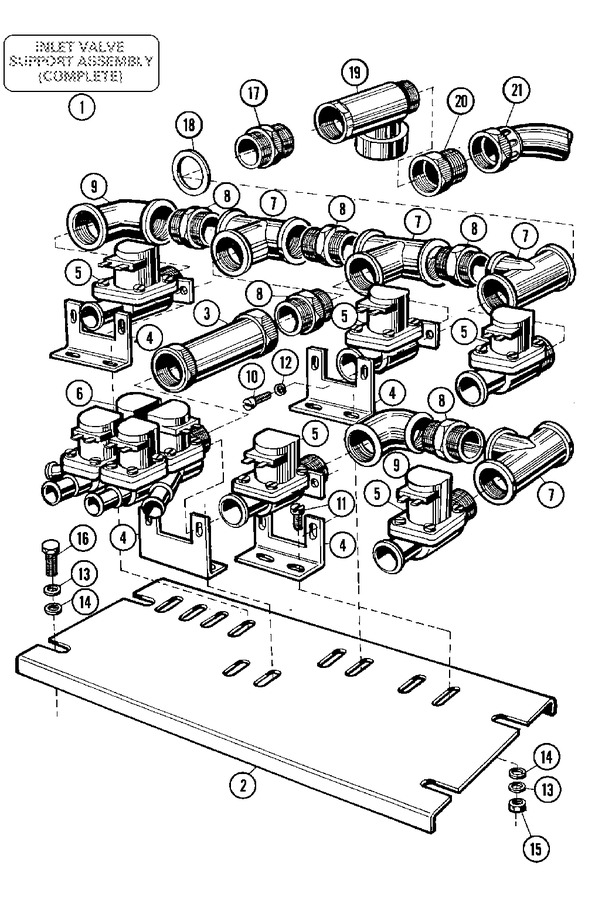

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23002313		Inlet Valve Support Assy. (2w)	10	Appelez-nous	-
002	23002314		Support, Inlet Valve	10	Appelez-nous	-
003	23001484		Extension, Brass Pipe Thread	10	Appelez-nous	-
004	NLA		Support, Valve	10	Appelez-nous	-
005	23001754		Valve, One Way (3/4``)	10	Appelez-nous	-
005	24001122		Kit, Valve Repair (13mm)	10	Appelez-nous	-
006	WP23001755		Valve, Four Way (3/4``)   (Replaces: 23001755)	10			$ 272.26
006	24001121		Kit, Valve Repair (10mm)	10	Appelez-nous	-
007	23001485		Tee, 3/4`` Pipe Thread (brass)	10	Appelez-nous	-
008	23001482		Connection (3/4`` Pipe Thread)	10			$ 747.91
009	23001756		Elbow (3/4``)	10	Appelez-nous	-
010	23001361		Bolt M4x10	10	Appelez-nous	-
011	20002815		Bolt (m6x12)   (Replaces: 23001157)	10			$ 188.18
012	23001013		Washer	10	Appelez-nous	-
013	23001757		Washer (16)	10	Appelez-nous	-
014	23001580		Washer (6.4)	10	Appelez-nous	-
015	23001034		Nut (m6)	10	Appelez-nous	-
016	23001749		Screw (m6x16)	10	Appelez-nous	-
017	NLA		Nipple, Pipe	10	Appelez-nous	-
018	23001483		Washer (dia. 40 X 6.5 X 3)	10	Appelez-nous	-
019	23001759		Filter	10	Appelez-nous	-
020	23001477		Adapter (3/4``)	10			$ 1,009.32
021	23001523		Hose, Connection	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
