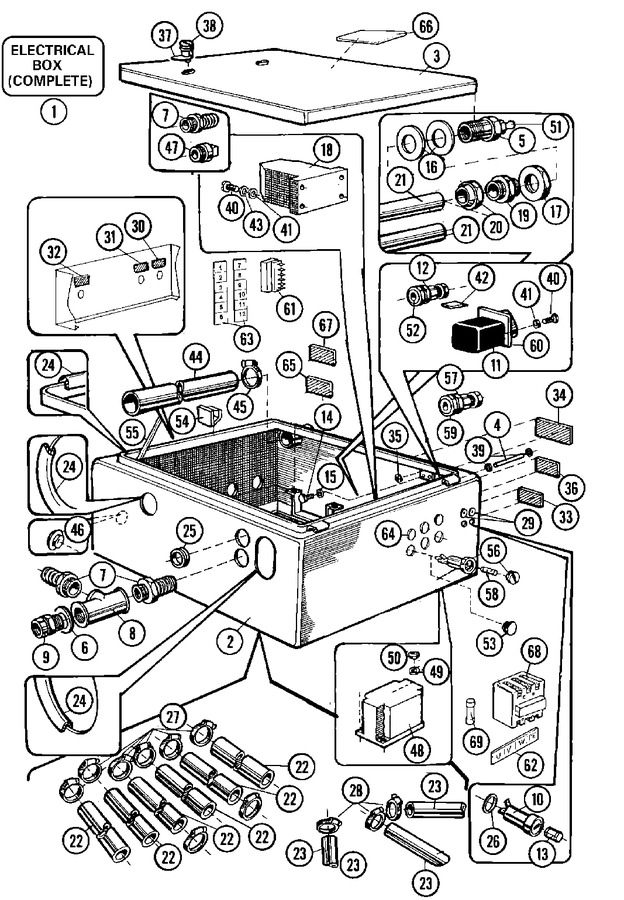

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | NLA | Box, Electrical (complete) | 10 |
|
- | ||||
| 002 | NLA | Box, Electrical | 10 |
|
- | ||||
| 003 | NLA | Cover, Electrical Box | 10 |
|
- | ||||
| 004 | 23001690 | Hinge | 10 |
|
- | ||||
| 005 | 23001726 | Adaptor, Connection | 10 |
|
- | ||||
| 006 | 23001483 | Washer (dia. 40 X 6.5 X 3) | 10 |
|
- | ||||
| 007 | 23001727 | Connection, Tube | 10 |
|
- | ||||
| 008 | 23001485 | Tee, 3/4`` Pipe Thread (brass) | 10 |
|
- | ||||
| 009 | 23001729 | Tube, Extension | 10 |
|
- | ||||
| 010 | 23001462 | Holder, Fuse | 10 |
|
- | ||||
| 011 | 23001731 | Switch, Main (63a) | 10 |
|
- | ||||
| 011 | NLA | Lock, Main Switch (63a) | 10 |
|
- | ||||
| 012 | 23002196 | Swivel, Cable | 10 |
|
- | ||||
| 013 | 23001463 | Fuse (2a) | 10 |
|
- | ||||
| 014 | 23001733 | Screw (m6x10) | 10 |
|
- | ||||
| 015 | 23001734 | Washer (m6) | 10 |
|
- | ||||
| 016 | 23002246 | Washer | 10 |
|
- | ||||
| 017 | 23001736 | Nut (m14x1.5) | 10 |
|
- | ||||
| 018 | 23001103 | Contactor (lc1-d3201 M7) | 10 |
|
- | ||||
| 019 | 23001737 | Branch, Connecting (m10x1) | 10 |
|
- | ||||
| 020 | 23001738 | Nut, Traveling (m12x1.5) | 10 |
|
- | ||||
| 021 | 23001739 | Hose, Grease | 10 |
|
- | ||||
| 022 | 23001740 | Hose (19x27) | 10 |
|
- | ||||
| 023 | 23001507 | Waterhose (green) | 10 |
|
- | ||||
| 023 | 23003707 | Check Valve | 16 |
|
- | ||||
| 024 | 23001088 | Trim, Rubber | 10 |
|
- | ||||
| 025 | NLA | Passage, Cable (22x2) | 10 |
|
- | ||||
| 026 | 23001743 | Ring, O (10x2) | 10 |
|
- | ||||
| 027 | WP616099 | Clamp, Hose (20-32) (Replaces: 23001262) | 10 |
|
Immediately | $ 7.03 | |||
| 028 | WP596669 | Clamp, Hose (Replaces: 23001506) | 10 |
|
Immediately | $ 7.56 | |||
| 029 | 23001744 | Label (2a) | 10 |
|
- | ||||
| 030 | 23001469 | Sticker, Hot Water | 10 |
|
$ 1,212.53 | ||||
| 031 | 23001471 | Label (cold Hard Water) | 10 |
|
$ 1,387.22 | ||||
| 032 | NLA | Label (cold Soft Water) | 10 |
|
- | ||||
| 033 | NLA | Label (warning) | 10 |
|
- | ||||
| 034 | 23001550 | Label (service Warning) | 10 |
|
- | ||||
| 035 | NLA | Label, Earth | 10 |
|
- | ||||
| 036 | 23002307 | Label, Lubricating | 10 |
|
- | ||||
| 037 | 23001006 | Lock, Top Panel | 10 |
|
- | ||||
| 038 | 23001009 | Hook, Lock (short) | 10 |
|
- | ||||
| 039 | 23001056 | Ring, Retaining | 10 |
|
- | ||||
| 040 | 23001748 | Screw (m4x12) | 10 |
|
- | ||||
| 041 | 23001013 | Washer | 10 |
|
- | ||||
| 042 | 23002308 | Label, Warning Under Current | 10 |
|
- | ||||
| 043 | 23001056 | Washer (4.3) | 10 |
|
- | ||||
| 044 | 23002309 | Hose, Air-venting | 10 |
|
- | ||||
| 045 | 23001750 | Ring, Clamp (40-60) | 10 |
|
- | ||||
| 046 | 23001476 | Plug, Water Inlet | 10 |
|
$ 705.49 | ||||
| 047 | 23001604 | Plug (3/4``) | 10 |
|
- | ||||
| 048 | 23002142 | Transformer | 10 |
|
- | ||||
| 048 | 23003704 | Transformer (250 Va) | 17 |
|
- | ||||
| 049 | 23004485 | Washer, Lock (m5) (Replaces: 23001333) | 10 |
|
- | ||||
| 050 | W10244602 | Nut (m5) Lu (Replaces: 23001334) | 10 |
|
$ 11.90 | ||||
| 051 | 23001753 | Nipple, Lubricating | 10 |
|
- | ||||
| 052 | 23002197 | Nut | 10 |
|
- | ||||
| 053 | 23002153 | Plug | 10 |
|
- | ||||
| 054 | NLA | Hook, Stick | 10 |
|
- | ||||
| 055 | NLA | Support | 10 |
|
- | ||||
| 056 | 23002210 | Holder, Fuse | 10 |
|
- | ||||
| 057 | 23002211 | Swivel, Cable | 10 |
|
- | ||||
| 058 | 23002310 | Fuse (4a) | 10 |
|
- | ||||
| 059 | 23002212 | Nut | 10 |
|
- | ||||
| 060 | 23002141 | Device, Operating | 10 |
|
- | ||||
| 061 | 23002154 | Board, Terminal (6 Poles) | 10 |
|
- | ||||
| 062 | NLA | Label (u V W Pe) | 10 |
|
- | ||||
| 063 | 23002218 | Label, Terminal Board | 10 |
|
- | ||||
| 064 | NLA | Label (4a) | 10 |
|
- | ||||
| 065 | 23002053 | Label, Warning Vent Out | 10 |
|
- | ||||
| 066 | 23002312 | Label, Flash | 10 |
|
- | ||||
| 067 | 23002297 | Label, Heatwarning | 10 |
|
- | ||||
| 070 | 23001551 | Gutter, Cable (plastic) | 10 |
|
- |
