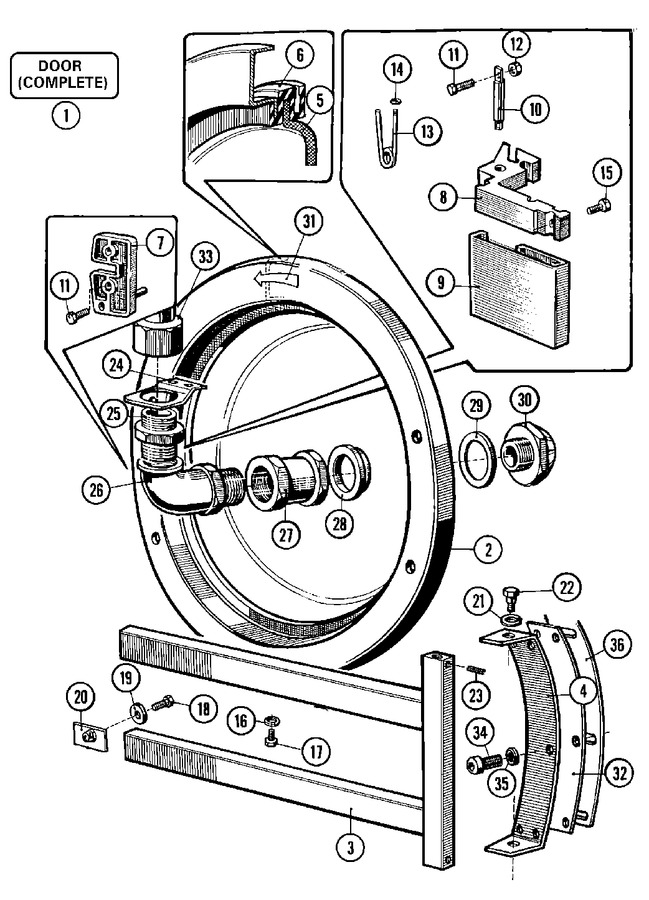

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23002260		Door (complete)	10	Appelez-nous	-
002	23002261		Ring, Door	10	Appelez-nous	-
003	23002262		Holder	10	Appelez-nous	-
004	23002263		Hinge	10	Appelez-nous	-
005	23002264		Glass	10	Appelez-nous	-
005	23003710		Door Glass	13	Appelez-nous	-
006	23001612		Seal, Door	10	Appelez-nous	-
007	23001370		Plate, Hinge	10	Appelez-nous	-
008	23001613		Handle, Door Lever	10	Appelez-nous	-
008	23003633		Lever, Door	14	Appelez-nous	-
009	12001889		Kit, Door Handle Assembly	14	Appelez-nous	-
009	23001614		Doorlock, Handlegrip	10	Appelez-nous	-
010	23001168		Shaft, Lever	10	Appelez-nous	-
011	23001175		Screw (m6x20 Stnls Steel)	10	Appelez-nous	-
011	23002937		Screw (m6x26)	14	Appelez-nous	-
012	23001310		Nut, Self Locking (m6)	10	Appelez-nous	-
012	23001643		Washer (m6)	10	Appelez-nous	-
012	23002471		Nut	14	Appelez-nous	-
013	23001169		Spring, Handle Lever	10	Appelez-nous	-
014	23001057		Speednut (m3)	10	Appelez-nous	-
015	23001616		Screw (m4x6)	10	Appelez-nous	-
016	23001582		Washer (6)	10	Appelez-nous	-
017	23001617		Screw (m6x12)	10	Appelez-nous	-
018	23004114		Screw (m6x18)   (Replaces: 23001618)	10	Appelez-nous	-
019	23002265		Washer	10	Appelez-nous	-
020	23001619		Nut, Doorhandle	10	Appelez-nous	-
021	NLA		Piece, Insertion	10	Appelez-nous	-
022	23002266		Bolt (m10)	10	Appelez-nous	-
023	23001621		Screw (m4x12) Lu	10		Immediately	$ 311.03
024	23001622		Shower, Support Door	10	Appelez-nous	-
025	23001623		Adapter, Fitting	10	Appelez-nous	-
026	23001624		Connection, Elbow	10	Appelez-nous	-
027	23001625		Adapter, Fitting	10	Appelez-nous	-
028	23001626		Washer, Shower	10	Appelez-nous	-
029	23001627		O Ring	10	Appelez-nous	-
030	23001628		Shower, Door	10	Appelez-nous	-
031	NLA		Plate, ``spin Direction`` Index	10	Appelez-nous	-
032	23002267		Washer, Hinge	10	Appelez-nous	-
033	23001630		Hose, Water Inlet	10	Appelez-nous	-
034	23001602		Bolt, Lentil Cup (m8x16)	10	Appelez-nous	-
035	23001631		Washer (m8)	10	Appelez-nous	-
036	23002268		Washer, Distance	10	Appelez-nous	-
