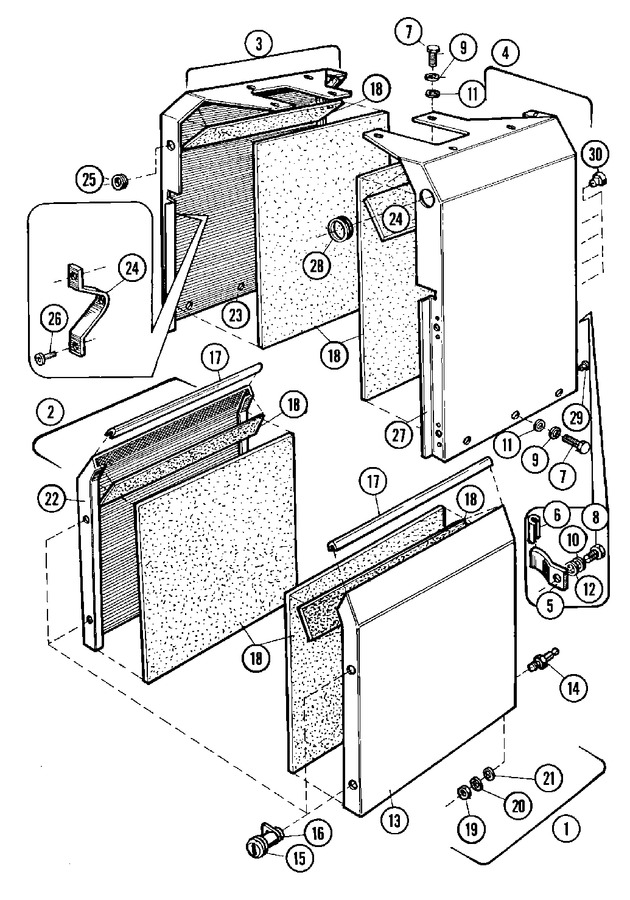

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23002234		Panel, Front Rt. Side (comp.)	10	Appelez-nous	-
002	23002235		Panel, Front Lt. Side (comp.)	10	Appelez-nous	-
003	NLA		Panel, Back Lt. Side (comp.)	10	Appelez-nous	-
004	NLA		Panel, Back Rt. Side (comp.)	10	Appelez-nous	-
005	23002238		Clamp, Rear Cover	10	Appelez-nous	-
006	23001088		Trim, Rubber	10	Appelez-nous	-
007	23001577		Bolt (m10x20) Lu	10	Appelez-nous	-
008	20002815		Bolt (m6x12)   (Replaces: 23001157)	10			$ 188.18
009	NLA		Washer (10.5)	10	Appelez-nous	-
010	23001580		Washer (6.4)	10	Appelez-nous	-
011	23001400		Washer (10)	10	Appelez-nous	-
012	23001582		Washer (6)	10	Appelez-nous	-
013	NLA		Panel, Front Side (rt.)	10	Appelez-nous	-
014	23001332		Pin, Srv	10	Appelez-nous	-
015	23001007		Washer	10	Appelez-nous	-
015	23001583		Device, Locking	10	Appelez-nous	-
016	23001008		Nut (large)	10			$ 186.62
016	23001009		Hook, Lock (short)	10	Appelez-nous	-
016	23001011		Nut (small)	10	Appelez-nous	-
017	23001088		Trim, Rubber	10	Appelez-nous	-
018	23001567		Sheet, Anti-vibration	10	Appelez-nous	-
019	W10244602		Nut (m5) Lu   (Replaces: 23001334)	10			$ 11.90
020	23001585		Washer (5.3)	10	Appelez-nous	-
021	23004485		Washer, Spring (5)   (Replaces: 23001333)	10	Appelez-nous	-
022	23002240		Panel, Front Side (lt)	10	Appelez-nous	-
023	23002241		Panel, Back Side (lt)	10	Appelez-nous	-
024	23001032		Clamp, Srv	10	Appelez-nous	-
025	23001587		Protection, Rubber (15x2)	10	Appelez-nous	-
026	23001033		Rivets, Blind (dia. 3.2 X 8)lu	10	Appelez-nous	-
027	23002242		Panel, Back Side (rt.)	10	Appelez-nous	-
028	23001088		Rubber, Protecting	10	Appelez-nous	-
029	23001575		Nut, Insert (m6)	10	Appelez-nous	-
030	23002243		Plug, Universal	10	Appelez-nous	-
