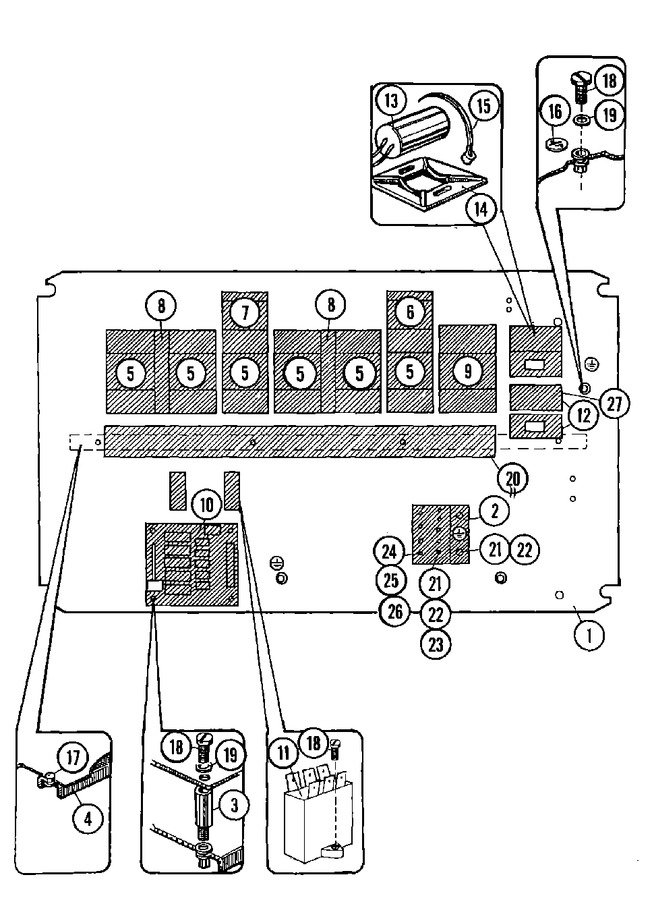

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | 23002158 | Plate, Mounting | 10 |
|
- | ||||
| 001 | NLA | Label, Description | 10 |
|
- | ||||
| 002 | 23002099 | Cube, Earth | 10 |
|
- | ||||
| 003 | 23002084 | Holder, Programmer | 10 |
|
- | ||||
| 004 | 23001716 | Support, Mounting Plate | 10 |
|
- | ||||
| 005 | 23001101 | Contactor (lc1-d1201 M7) | 10 |
|
- | ||||
| 005 | 23001102 | Contactor (lc1-d1801 M7) | 10 |
|
Immediately | $ 2,343.16 | |||
| 006 | 23001105 | Relay, Thermal Overload (9-13a | 10 |
|
- | ||||
| 006 | 23001106 | Relay, Thermal Overload (4-6a) | 10 |
|
- | ||||
| 007 | 23001108 | Relay, Thermal Overload (7-10a | 10 |
|
- | ||||
| 007 | 23002101 | Thermal Overload (lr2-d1312) | 10 |
|
- | ||||
| 008 | 23001119 | Mechanical Interlock, Contacto | 10 |
|
- | ||||
| 009 | 23001717 | Breaker, Circuit | 10 |
|
- | ||||
| 010 | 23001718 | Board, Additional(soap Board) | 10 |
|
- | ||||
| 011 | 23001518 | Series 15 - No Longer Needed |
|
- | |||||
| 011 | NLA | R-c Member Fz | 10 |
|
- | ||||
| 012 | 23001094 | Bridge, Rectifier | 10 |
|
- | ||||
| 013 | NLA | Condensor | 10 |
|
- | ||||
| 014 | 23002048 | Holder, String | 10 |
|
- | ||||
| 015 | 23001720 | Wrap, Wire | 10 |
|
- | ||||
| 016 | NLA | Label, Earth | 10 |
|
- | ||||
| 017 | NLA | Rivet, Blind | 10 |
|
- | ||||
| 018 | 23001361 | Bolt M4x10 | 10 |
|
- | ||||
| 019 | 23001056 | Washer (4.3) | 10 |
|
- | ||||
| 020 | 23002103 | Gutter, Cable | 10 |
|
- | ||||
| 021 | 23001748 | Screw (m4x12) | 10 |
|
- | ||||
| 022 | 23002111 | Washer (4) | 10 |
|
Immediately | $ 221.87 | |||
| 023 | 23002129 | Washer (m4) | 10 |
|
- | ||||
| 024 | 23002303 | Bolt (m6x12) | 10 |
|
- | ||||
| 025 | 23001734 | Washer (m6) | 10 |
|
- | ||||
| 026 | 23001643 | Washer (m6) | 10 |
|
- | ||||
| 027 | 23001099 | Holder, Rectifier | 10 |
|
- |
