SELECT A DIAGRAM

01 - Frame & Cover Assembly


02 - Side Panel


03 - Outer Shell Assembly


04 - Inner Basket


05 - Door


06 - Door Lock Assembly


07 - Bearing Assembly


08 - Motor & Pulley


09 - Soap Box Assembly


10 - Control Panel


11 - Main Control


12 - Soap Injection & Accessories


13 - Water Valve Assembly


14 - Drain Valve Assembly

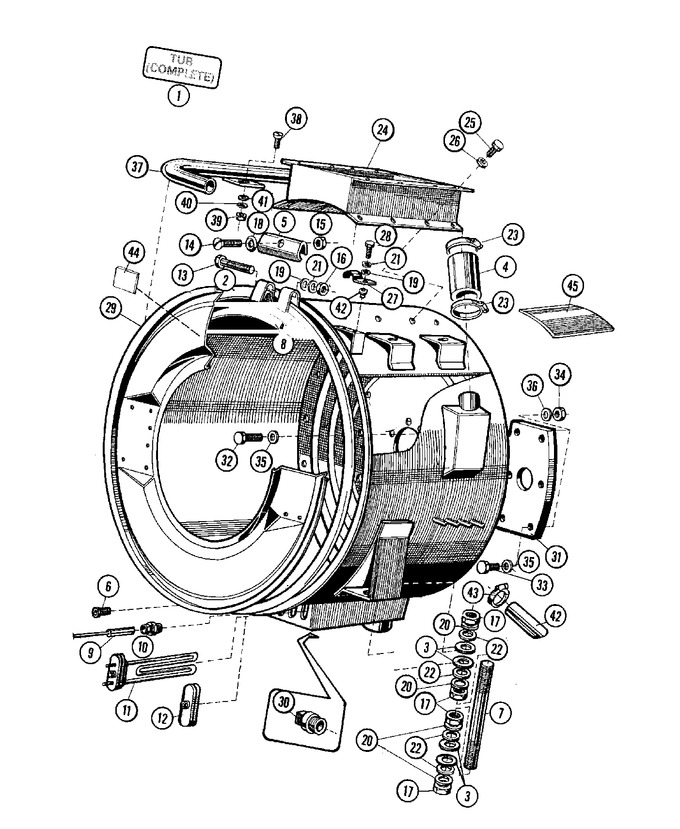

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23002244		Outer Tub (complete)	10	Appelez-nous	-
002	23002245		Ring, Front Shield Fastening	10	Appelez-nous	-
003	23002246		Washer	10	Appelez-nous	-
004	23001589		Tube, Soap Box (1=210mm)	10	Appelez-nous	-
005	NLA		Ring, Cover Fastening	10	Appelez-nous	-
006	23002247		Bolt	10	Appelez-nous	-
007	23002248		Bolt, Tub Front Adjusting	10	Appelez-nous	-
008	23001591		Seal, Front Shield (1=2700mm)	10	Appelez-nous	-
009	23001073		Sensor, Temperature	10	Appelez-nous	-
010	23001592		Adaptor	10	Appelez-nous	-
011	23001593		Element, Heating	10	Appelez-nous	-
012	23001594		Blind, Heating Element	10	Appelez-nous	-
013	NLA		Bolt (m6x60)	10	Appelez-nous	-
014	23001596		Bolt (m5x30)	10	Appelez-nous	-
015	23001597		Nut (m5)	10	Appelez-nous	-
016	23001034		Nut (m6)	10	Appelez-nous	-
017	23001599		Nut (m12)	10	Appelez-nous	-
018	23001204		Washer, Finishing (dia. 5)	10			$ 278.89
019	23001582		Washer (6)	10	Appelez-nous	-
020	23001419		Washer (12)	10	Appelez-nous	-
021	23001580		Washer (6.4)	10	Appelez-nous	-
022	23001292		Washer (13)	10	Appelez-nous	-
023	23001256		Clamp, Hose (60-80)	10	Appelez-nous	-
024	23002249		Support, Control Box (comp.)	10	Appelez-nous	-
025	23001602		Bolt, Lentil Cup (m8x16)	10	Appelez-nous	-
026	23001263		Washer (8.4)	10	Appelez-nous	-
027	NLA		Clamp, Spray Rinse Hose	10	Appelez-nous	-
028	23001603		Bolt (m6x12)	10	Appelez-nous	-
029	23002251		Front, Washing Machine (comp.)	10	Appelez-nous	-
030	23001604		Plug (3/4``)	10	Appelez-nous	-
031	23002252		Board, Carying	10	Appelez-nous	-
032	23001605		Screw (m8x30)	10	Appelez-nous	-
033	NLA		Bolt (m8x15)	10	Appelez-nous	-
034	23001607		Nut (m8)	10	Appelez-nous	-
035	23001608		Washer (m8) Lu	10	Appelez-nous	-
036	23001263		Washer (8.4)	10	Appelez-nous	-
037	23002253		Tube, Wire Protection	10			$ 2,685.83
038	23001609		Screw (m4x12)	10	Appelez-nous	-
039	23001014		Nut M4	10	Appelez-nous	-
040	23001013		Washer	10	Appelez-nous	-
041	23001610		Washer (4.3)	10	Appelez-nous	-
042	23002193		Hose	10	Appelez-nous	-
043	WP596669		Clamp, Hose   (Replaces: 23001506)	10		Immediately	$ 7.56
044	23002254		Label, Heatwarning	10	Appelez-nous	-
045	23002255		Al Aralamino	10	Appelez-nous	-
